This item is Discontinued.

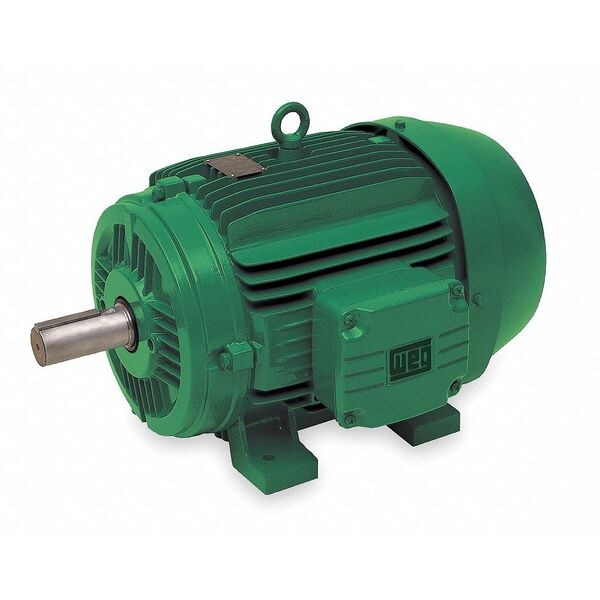

Weg 3-Phase Cooling Tower Motor, 3 HP, 182T Frame, 208-230/460 Voltage, 1760 Nameplate RPM 00318ET3ECT182T

3-Phase Cooling Tower Motor, 3 HP, 182T Frame, 208-230/460 Voltage, 1760 Nameplate RPM (Discontinued)

  • Mfr # 00318ET3ECT182T
  • Zoro # G0397022
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
00318ET3ECT182T
Zoro #
G0397022
UPC #
894171846863
Country of Origin
Multiple

Dimensions

Length Less Shaft
12 1/8 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Overall Length
14 7/8 in

Details

Item
Cooling Tower Motor
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Mounting Type
Rigid Base
HP
3
RPM Range
1701-1800
Voltage
208-230/460
Frame
182T
Motor Thermal Protection
None
Motor Service Factor
1.25
Voltage Compatibility
208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460
Motor Application
Cooling Tower
Motor Design
3-Phase
Nameplate RPM
1760
Motor Shaft Rotation
CW/CCW
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Frame Material
Cast Iron
Motor Shaft Design
Keyed
Standards
UL Recognized (E104590), CSA Certified (LR38324), CE
Frame Material
Cast Iron
Full Load Amps
8.6-7.8/3.9
Ambient Temperature
40 Degrees C
Motor Bearings
Ball
Ins. Class
F
Warranty
3 yr
Nominal Efficiency
89.5
Phase
3
Hz
60
Duty
Continuous
Motor Efficiency Group
NEMA Premium Efficient
Finish
Green
Max. Ambient Temp.
40 Degrees C

Description

Cooling Tower Motor, 3-Phase, Totally Enclosed Fan-Cooled, 3 HP, 1760 Nameplate RPM, 182T Frame, CW/CCW Motor Shaft Rotation, 208-230/460 Voltage, 8.6-7.8/3.9 Full Load Amps, 3 Phase, 60 Hz, Rigid Base Motor Mounting Type, Motor Mounting Position Horizontal or Vertical Shaft Up, Motor Bearings Ball, Motor Frame Material Cast Iron, None Motor Thermal Protection, 1.25 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 1 1/8 in, Shaft Length 2 3/4 in, Length Less Shaft 12 1/8 in
