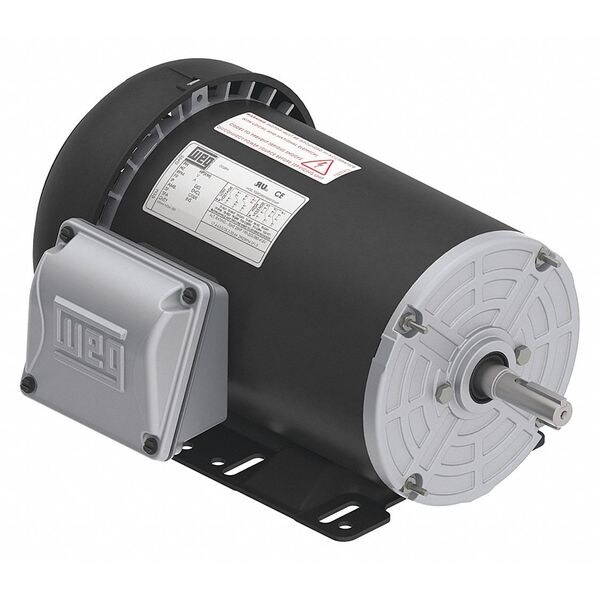

3-Phase General Purpose Motor, 1/4 HP, 56 Frame, 208-230/460 Voltage, 3420 Nameplate RPM (Discontinued)
- Mfr # .2536ES3EB56
- Zoro # G0549437
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
.2536ES3EB56
Zoro #
G0549437
UPC #
892304309179
Country of Origin
Brazil
Dimensions
Length Less Shaft
9 1/4 in
Overall Length
11 1/8 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 1/2 yr
Description
General Purpose Motor, Three Phase, Motor Design 3-Phase, 1/4 HP, Nameplate RPM 3420, No. of Speeds 1, Voltage 208-230/460, Full Load Amps 0.90-0.90/0.45, 56 Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Shaft Design Keyed, Motor Frame Material Rolled Steel
