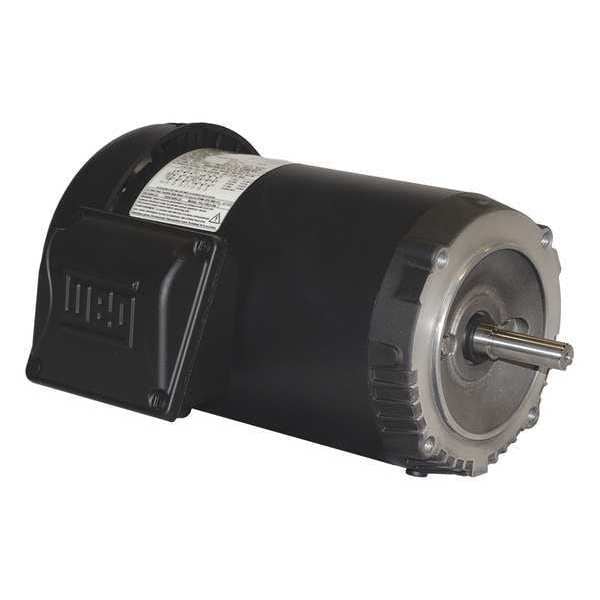

Three-Phase General Purpose Motor, 0.5 HP, 56C Frame, 208-230/460V AC Voltage, 1800 Nameplate RPM

The WEG - .5018ES3E56CFL-S is a General Purpose Motor, which falls under the category of 3-Phase AC Motors. These motors are commonly used in industrial and commercial settings for power transmission and pneumatics applications. They convert electrical energy into mechanical energy to operate different types of machinery across various sectors, from manufacturing lines to HVAC systems.

Key Features of the WEG - .5018ES3E56CFL-S General Purpose Motor:

• Duty Cycle: This motor is designed for a continuous duty cycle, which may be beneficial for certain industrial applications.
• Frame: The 56C frame houses and supports the internal parts of the motor, conforming to standard specifications for compatibility and interchangeability.
• Full Load Amps: The full load amps are rated at 0.9, an important factor to consider when determining power supply requirements.
• Horsepower (HP): Rated at 0.5 HP or half horsepower at a frequency of 50Hz; the user should assess if this meets their needs based on the intended application.
• Inverter Rated: Yes - meaning it's compatible with being powered by a variable frequency drive; however, actual control of speed and torque will depend on specific usage conditions.
• Insulation Class: F - referring to the manufacturer's specified maximum temperature rating under normal operating conditions.
• Kilowatt (Kw): Has an output capacity rating of up to 0.37 Kw under standard test conditions.
• Motor Bearings: Equipped with ball bearings designed to potentially reduce friction between moving parts; actual performance may vary based on load conditions
