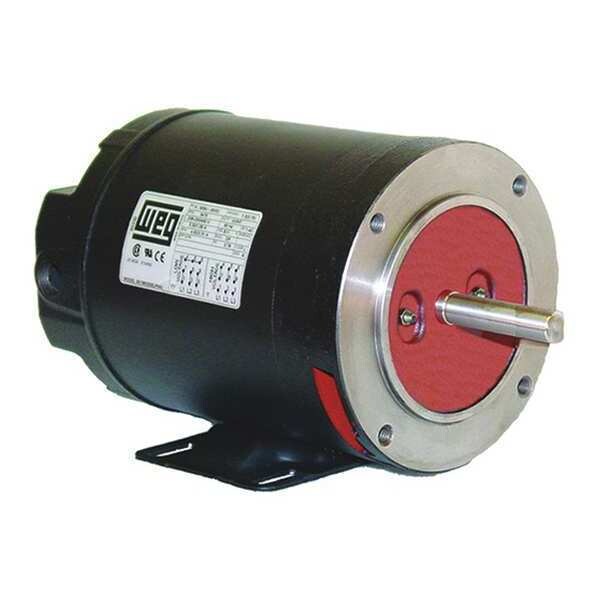

Three-Phase General Purpose Motor, 1 HP, 143/5TC Frame, 575V AC Voltage, 1760 rpm Nameplate RPM
Mfr # 00118OT3H143TC-S
Zoro # G9785501
product price:Â $378.99
/ea
Free Shipping & Returns
Key Features
Nameplate RPM
1760 rpm
Voltage
575V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.21 A
Frame
143/5TC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
00118OT3H143TC-S
Zoro #
G9785501
UPC #
-
Country of Origin
Multiple
Dimensions
Length Less Shaft
9 5/16 in
Overall Length
11 9/16 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
3 yr
Shaft Diameter
7/8 in
Frame Size
143-5TC
Description
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 HP, Nameplate RPM 1760 rpm, Frame 143/5TC, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.21 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1701-1800, CSA (70014057), UL (E104590
