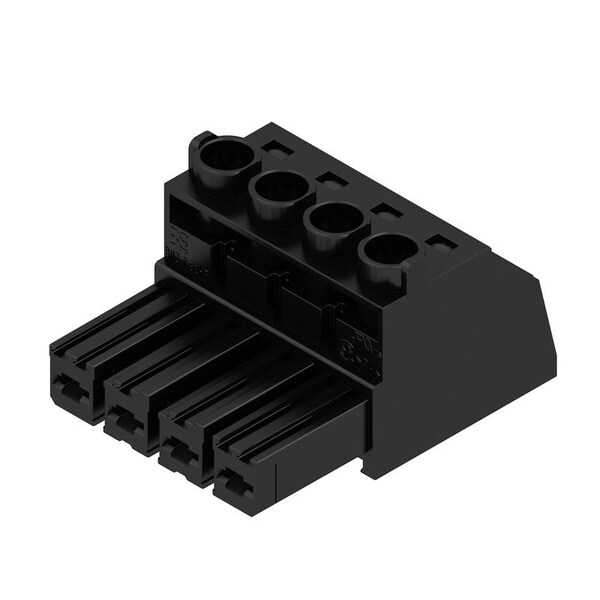

Certificate No. (cURus)
E60693
w. wire end ferrule, DIN 46228 pt 1, max.
6 mm²
Wire cross-section, AWG, min.
AWG 24
Rated voltage (Use group C / UL 1059)
600 V
Pulling force/pole, max.
11 N
Conductor outlet direction
180°
Rated voltage for surge voltage class / pollution degree III/2
1,000 V
UL 94 flammability rating
V-0
Rated current (Use group C / CSA)
40.5 A
Wire connection method
Clamping yoke connection
Flexible, max. H05(07) V-K
10 mm²
Rated impulse voltage for surge voltage class/ pollution degree II/2
6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
8 kV
Solid, min. H05(07) V-U
0.2 mm²
tested acc. to standard
IEC 60664-1, IEC 61984
w. plastic collar ferrule, DIN 46228 pt 4, max.
6 mm²
Colour chart (similar)
RAL 9011
Wire connection cross section AWG, max.
AWG 8
Certificate No. (CSA)
200039-1534443
Plug gauge in accordance with EN 60999 a x b; ø
2.8 mm x 2.0 mm; 2.4 mm
Tightening torque, max.
0.6 Nm
Storage temperature, min.
-25 °C
Rated current (Use group D / UL 1059)
5 A
Plugging force/pole, max.
16.5 N
Rated voltage (Use group C / CSA)
600 V
Screwdriver blade
0.6 x 3.5
Max. clamping range
10 mm²
Contact Base Material
Copper alloy
Insulating material
PA GF
Solid, max. H05(07) V-U
6 mm²
Approvals
CSA, cURus, EAC
Wire connection cross section AWG, min.
AWG 24
Insulating material group
II
Operating temperature, min.
-50 °C
Clamping range, min.
0.2 mm²
Rated current (Use group B / UL 1059)
40.5 A
Rated current (Use group D / CSA)
5 A
Storage temperature, max.
55 °C
Rated voltage for surge voltage class / pollution degree III/3
800 V
Max. relative humidity during storage
80 %
Rated current (Use group B / CSA)
40.5 A
Rated voltage for surge voltage class / pollution degree II/2
1,000 V
Rated voltage (Use group B / CSA)
600 V
Volume resistance
4.50 mΩ
Wire cross-section, AWG, max.
AWG 8
Temperature range, installation, max.
100 °C
Rated impulse voltage for surge voltage class/ contamination degree III/3
8 kV
Rated current, min. number of poles (Tu=40°C)
41 A
Tightening torque, min.
0.5 Nm
Touch-safe protection acc. to DIN VDE 0470
IP 20
Rated current, min. number of poles (Tu=20°C)
57 A
Pitch in inches (P)
0.3 inch
Rated voltage (Use group D / CSA)
600 V
Temperature range, installation, min.
-25 °C
Comparative Tracking Index (CTI)
≥500
Rated current (Use group C / UL 1059)
40.5 A
Flexible, min. H05(07) V-K
0.5 mm²
Insulation strength
≥108 Ω
w. wire end ferrule, DIN 46228 pt 1, min.
0.25 mm²
Creepage distance, min.
13.8 mm
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Short-time withstand current resistance
3 x 1s with 420 A
Rated voltage (Use group D / UL 1059)
600 V
Rated voltage (Use group B / UL 1059)
600 V
UL File Number Search
E60693
Layer structure of plug contact
6-8µm Sn glossy
Type of connection
Field connection
Clamping range, max.
10 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0.25 mm²
Contact material
Copper alloy
Rated cross-section
6 mm²
Operating temperature, max.
125 °C
