  11. Box of 100 Terminal and Contact Block
This item is Discontinued.

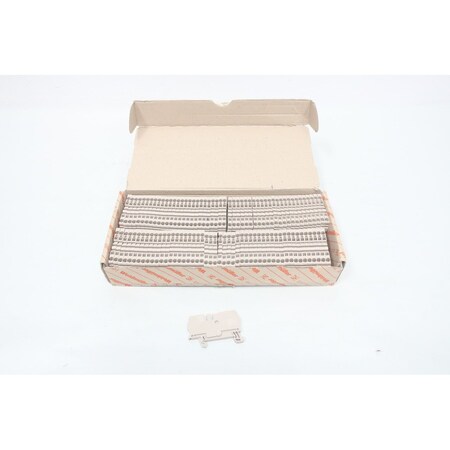

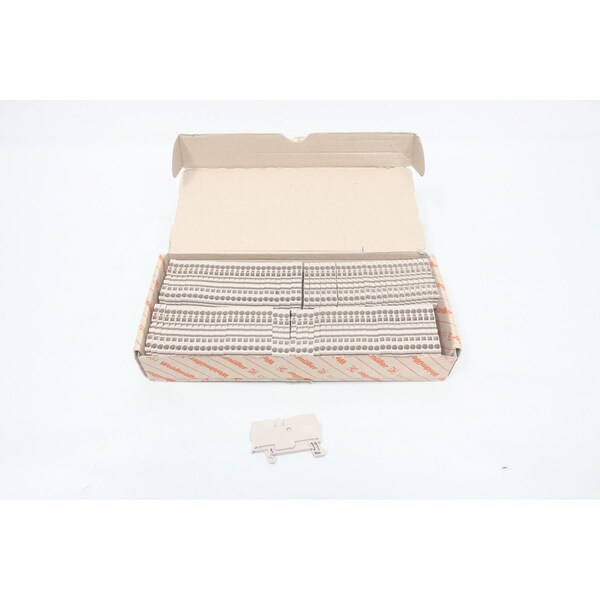

Weidmuller Box of 100 Terminal and Contact Block 1608510000

Box of 100 Terminal and Contact Block (Discontinued)

  • Mfr # 1608510000
  • Zoro # G305303896
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1608510000
Zoro #
G305303896
UPC #
-
Country of Origin
Unknown

Dimensions

Conductor size Field wiring max. (UR)
12 AWG
Conductor size Field wiring min. (UR)
30 AWG
Voltage size B (CSA)
600 V
Stripping length
10 mm
Blade Size
0.6 x 3.5 mm
Voltage size C (UR)
600 V
Voltage size D (CSA)
600 V
Conductor size Factory wiring min. (UR)
30 AWG
Voltage size C (CSA)
600 V
Conductor size Factory wiring max. (UR)
12 AWG
Width (inches)
0.201 inch
Current size C (UR)
25 A
Depth (inches)
1.516 inch
Current size C (CSA)
27 A
Depth including DIN rail
39.5 mm
Current size B (CSA)
27 A
Height (inches)
2.343 inch
Current size D (CSA)
5A

Details

Standards
IEC 60947-7-1
Material
Wemid
Rated cross-section
2.5 mm²
Continuous operating temp., min.
-50 °C
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2.5 mm²
Pollution severity
3
Wire cross section max. (IECEX)
4 mm²
Continuous operating temp., max.
120 °C
Gauge to IEC 60947-1
A3
Storage temperature, min.
10 °C
Max. voltage (IECEX)
550 V
Wire connection cross section AWG, max.
AWG 12
Rated impulse withstand voltage
8 kV
End cover plate required
Yes
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.5 mm²
Number of potentials per tier
1
Clamping range, min.
0.05 mm²
Operating Temperature Range
For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Number of Levels
1
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2.5 mm²
Wire connection cross-section, solid core, max.
4 mm²
Number of similar terminals
1
Number of clamping points per level
2
Certificate No. (IECEX)
IECEXULD15.0008U
UL File Number Search
E60693
Current (IECEX)
22 A
Type of mounting
Snap-on
Certificate No. (ATEX)
KEMA97ATEX2521U
Current at maximum wires
30 A
Wire cross section max. (ATEX)
2.5 mm²
Wire connection cross section AWG, min.
AWG 30
Connection direction
top
Certificate No. (CSA)
200039-1152892
Storage temperature, max.
40 °C
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.5 mm²
Open sides
right
PE connection
No
Version
Tension-clamp connection, for plug-in cross-connector, One end without connector
Colour
dark beige
Clamping range, max.
4 mm²
Rated voltage
800 V
Wire connection cross-section, finely stranded, min.
0.5 mm²
Certificate No. (UR)
E60693
Rail
TS 35
Approvals
CE, CSA, CURUSEX, DEMKOATEX, DNV GL, EAC, IECEXULD, INMETRO, KEMAATEX, KEMAKEUR, LLOYDSREG, MARITREG, RINA, UR
Wire connection cross-section, solid core, min.
0.5 mm²
Rated current
24 A
Wire cross section min. (CSA)
26 AWG
Volume resistance according to IEC 60947-7-x
1.33 mΩ
Current (ATEX)
21 A
Marking EN 60079-7
Ex eb II C Gb
Storage temperature
10°C...40°C
Max. voltage (ATEX)
550 V
UL 94 flammability rating
V-0
Power loss in accordance with IEC 60947-7-x
0.77 W
Wire connection cross section, finely stranded, max.
4 mm²
Number of connections
2
Wire cross section max. (CSA)
12 AWG
Type of connection
Tension-clamp connection
