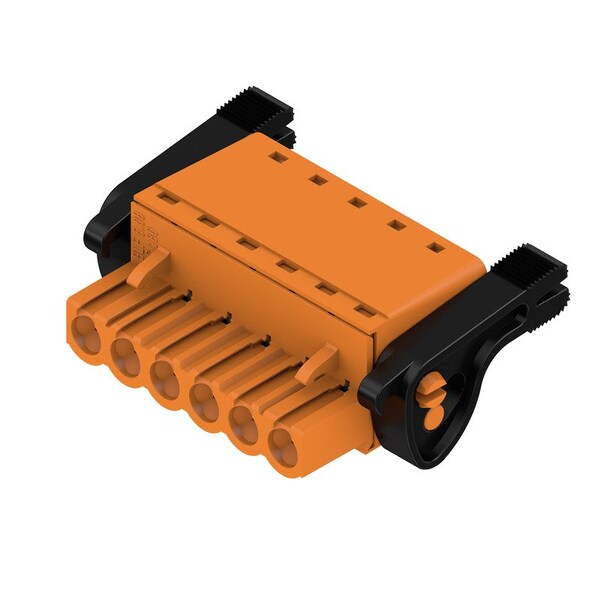

Rated voltage for surge voltage class / pollution degree III/3
250 V
Rated current (Use group B / UL 1059)
18.5 A
Rated current (Use group D / UL 1059)
10 A
Insulating material group
IIIa
Approvals
CSA, cURus, EAC
Flexible, min. H05(07) V-K
0.2 mm²
Pulling force/pole, max.
5.5 N
Temperature range, installation, max.
100 °C
Screwdriver blade
0.6 x 3.5
Max. clamping range
3.31 mm²
Touch-safe protection acc. to DIN VDE 0470
IP 20
Colour chart (similar)
RAL 2000
Storage temperature, max.
55 °C
Conductor outlet direction
180°
Wire cross-section, AWG, min.
AWG 26
Rated current (Use group D / CSA)
10 A
Colour of operational elements
black
Rated current, max. number of poles (Tu=20°C)
19 A
Temperature range, installation, min.
-30 °C
Wire connection cross section AWG, max.
AWG 12
Wire cross-section, AWG, max.
AWG 12
Screwdriver blade standard
DIN 5264
Wire connection method
PUSH IN, Tension-clamp connection
Pitch in inches (P)
0.2 inch
Solid, min. H05(07) V-U
0.2 mm²
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Plugging force/pole, max.
7 N
Type of connection
Field connection
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group D / CSA)
300 V
w. wire end ferrule, DIN 46228 pt 1, min.
0.25 mm²
Rated voltage for surge voltage class / pollution degree II/2
400 V
Rated current, min. number of poles (Tu=40°C)
21 A
Clamping range, min.
0.13 mm²
Rated impulse voltage for surge voltage class/ pollution degree III/2
4 kV
Short-time withstand current resistance
3 x 1s with 120 A
w. wire end ferrule, DIN 46228 pt 1, max.
2.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
2.5 mm²
Rated current, max. number of poles (Tu=40°C)
16.5 A
Storage temperature, min.
-25 °C
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage for surge voltage class / pollution degree III/2
320 V
Operating temperature, min.
-50 °C
Max. relative humidity during storage
80 %
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Layer structure of plug contact
4-8µm Sn hot-dip tinned
Operating temperature, max.
100 °C
Material of operational elements
PBT
Rated cross-section
2.5 mm²
Plug gauge in accordance with EN 60999 a x b; ø
2.8 mm x 2.0 mm
UL File Number Search
E60693
Insulation strength
≥108 Ω
Rated current, min. number of poles (Tu=20°C)
24 A
w. plastic collar ferrule, DIN 46228 pt 4, min.
0.25 mm²
tested acc. to standard
IEC 60664-1, IEC 61984
Certificate No. (cURus)
E60693
UL 94 flammability rating
V-0
Clamping range, max.
3.31 mm²
Rated voltage (Use group D / UL 1059)
300 V
Wire connection cross section AWG, min.
AWG 26
Comparative Tracking Index (CTI)
≥200
Rated voltage (Use group B / CSA)
300 V
Solid, max. H05(07) V-U
2.5 mm²
Flexible, max. H05(07) V-K
2.5 mm²
Rated impulse voltage for surge voltage class/ contamination degree III/3
4 kV
