  11. Terminal Block, 31A, 500V, 12 AWG, Screw Termination

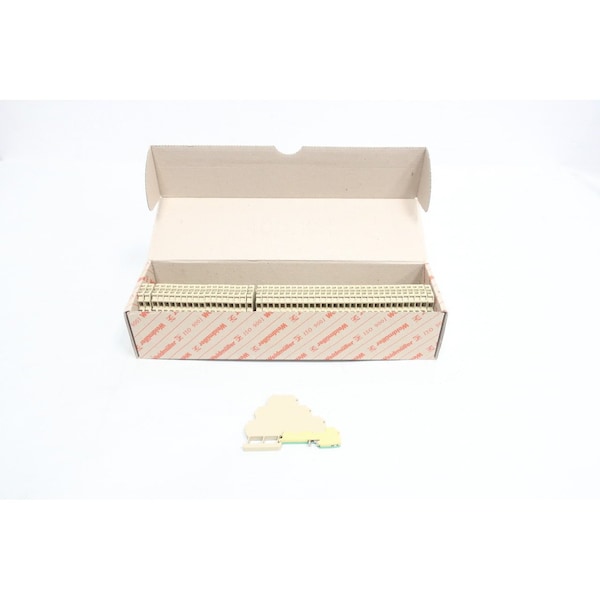

Weidmuller Terminal Block, 31A, 500V, 12 AWG, Screw Termination 1615270000 - main

Terminal Block, 31A, 500V, 12 AWG, Screw Termination

  • Mfr # 1615270000

  • Zoro # G308238195

product price: $413.99
/pk 50, $8.28/ea
Free Shipping & Returns

Key Features

Mounting Type
Clip-On
Connection Type
Screw Clamp
Current
31 A
Maximum Voltage
500 V
Termination Style
Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1615270000
Zoro #
G308238195
UPC #
-
Country of Origin
Unknown

Dimensions

For Minimum Wire Size
26 AWG
For Maximum Wire Size
12 AWG
Stripping length
8 mm
Blade Size
0.6 x 3.5 mm
Current size C (CSA)
10A
Overall Width
0.244 in
Overall Length
3.465 in
Overall Depth
2.48 in

Details

Item
Terminal Block
Mounting Type
Clip-On
Connection Type
Screw Clamp
Current
31 A
Maximum Voltage
500 V
Termination Style
Screw
Standards
CSA 12400-320, IEC 60947-7-1 (-7-2), UL E60693
Type
MAK 2.5
Material
PA 66
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.
0.75 mm²
Wire cross section max. (CSA)
12 AWG
Number of connections
7
Number of potentials
4
Wire connection cross section, solid core, min. rated connection
0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max.
2.5 mm²
No. of clamping points per level
2
End cover plate required
Yes
Clamping range, rated connection, min.
0.13 mm²
Rated current
24 A
Wire connection cross section, solid core max. rated connection
4 mm²
Clamping screw
M 2.5
Clamping range, rated connection, max.
4 mm²
Pollution severity
3
Version
Screw connection, With PE connection, One end without connector
Gauge to IEC 60947-1
A3
Open sides
right
Installation advice
Direct mounting
Mounting rail
TS 35
Wire cross section min. (CSA)
26 AWG
Wire connection cross section, finely stranded, max.
4 mm²
Surge voltage category
III
Wire connection cross-section, finely stranded, min.
0.5 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
0.5 mm²
PE function
Yes
Wire connection cross section, stranded, rated connection, min.
0.5 mm²
Connection direction
on side
Wire cross-section, finely stranded, two clampable wires, max.
1 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max.
2.5 mm²
Volume resistance according to IEC 60947-7-x
3.99 mΩ
Wire connection cross section, stranded, rated connection, max.
4 mm²
Rated impulse withstand voltage
6 kV
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min.
0.5 mm²
Tightening torque, min.
0.4 Nm
Rated cross-section
2.5 mm²
Tightening torque, max.
0.6 Nm
UL 94 flammability rating
V-2
Number of Levels
4
Continuous operating temp., max.
100 °C
Continuous operating temp., min.
-50 °C
Number of potentials per tier
1
Wire connection cross section, finely stranded, two clampable wires, min.
0.5 mm²
Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min.
0.5 mm²
PE connection
Yes
