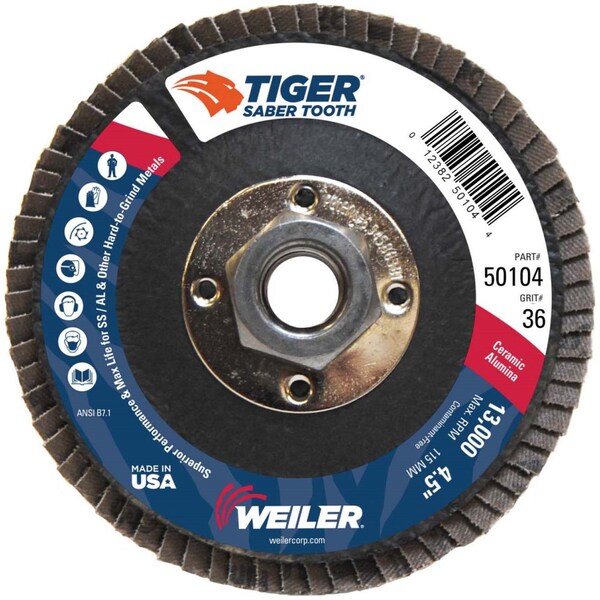

4-1/2" Tiger Flap Disc, Conical (TY29), Phenolic Back, 36C, 5/8"-11 UNC
Mfr # 50104
Zoro # G800942743
product price:
$
10.85
/ea
Sold in multiples of 10 for $108.50
Key Features
Density
Standard Density
Connector Size
5/8"-11 UNC
Backing Plate Material
Phenolic
Maximum Operating Speed
13000 RPM
Application
Grinding, Finishing; Fabrication, Food & Pharma, Automotive, Shipbuilding, Pressure Vessel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 50104
- Zoro #
- G800942743
- UPC #
- 12382501044
- Country of Origin
- United States
Dimensions
- Connector Size
- 5/8"-11 UNC
- Overall Diameter
- 4-1/2 in
Details
- Density
- Standard Density
- Backing Plate Material
- Phenolic
- Maximum Operating Speed
- 13000 RPM
- Application
- Grinding, Finishing; Fabrication, Food & Pharma, Automotive, Shipbuilding, Pressure Vessel
- Item
- Flap Disc
- Color
- Red
- Grit
- 36
- Abrasive Type
- C
- Compatible Tool
- Right Angle Grinder
- Series
- Tiger Ceramic
- Flap Disc Type
- Type 29
Description
Tiger Ceramic 4.5 inch conical flap discs are designed for maximum performance when grinding aluminum, stainless steel and other hard-to-grind metals. A top coat protects high-value parts stainless steel parts from heat discolorization and also prevents loading on soft alloys like aluminum.
Ceramic grains utilize a crystalline structure that is designed with millions of fracture points that self-sharpen at a higher rate than other grains. The result is a high material removal rate, cool grinding, and reduced friction at less pressure which reduces operator fatigue.
The type 29 conical disc shape maximizes surface contact when grinding between 15° – 35° for aggressive stock removal on flat surfaces while the 36 grit abrasive grain is best for heavy stock removal, edge beveling, and chamfering with a right angle grinder. This disc offers a metal 5/8" - 11 nut that allows for quick changeovers and prevents the disc from sticking to the spindle. Top coated for cool grinding, protecting high-value parts from heat discoloration. Prevents loading on soft alloys like aluminum. Contaminant-free (contains less than 0.1% Fe, S, Cl). Conical disc shape maximizes surface contact for aggressive stock removal on flat surfaces. Ceramic alumina (CA) grains are self-sharpening micro-fracturing crystals that expose sharp edges, maintaining a high cut-rate for the life of the grain.
Ceramic grains utilize a crystalline structure that is designed with millions of fracture points that self-sharpen at a higher rate than other grains. The result is a high material removal rate, cool grinding, and reduced friction at less pressure which reduces operator fatigue.
The type 29 conical disc shape maximizes surface contact when grinding between 15° – 35° for aggressive stock removal on flat surfaces while the 36 grit abrasive grain is best for heavy stock removal, edge beveling, and chamfering with a right angle grinder. This disc offers a metal 5/8" - 11 nut that allows for quick changeovers and prevents the disc from sticking to the spindle. Top coated for cool grinding, protecting high-value parts from heat discoloration. Prevents loading on soft alloys like aluminum. Contaminant-free (contains less than 0.1% Fe, S, Cl). Conical disc shape maximizes surface contact for aggressive stock removal on flat surfaces. Ceramic alumina (CA) grains are self-sharpening micro-fracturing crystals that expose sharp edges, maintaining a high cut-rate for the life of the grain.
