  9. Vacuum Pump, 1 HP, 29.90 In. Hg, 10.6 cfm

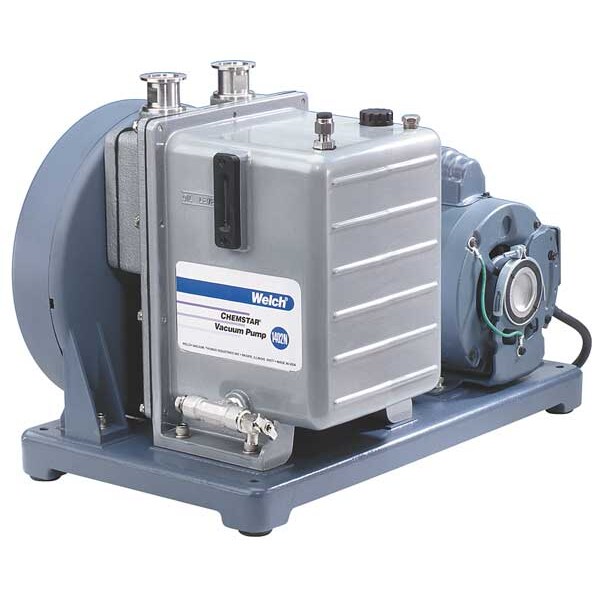

Welch Vacuum Pump, 1 HP, 29.90 In. Hg, 10.6 cfm 1376N-01 - main

Vacuum Pump, 1 HP, 29.90 In. Hg, 10.6 cfm

  • Mfr # 1376N-01

  • Zoro # G1377275

product price: $6,899.99
/ea
Item requires special delivery charges. A $200.00 per item surcharge will be applied.

Key Features

HP
1 hp
Voltage
115/230V AC
Phase
1
Weight
156 lb
Amps AC
11.0/5.5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1376N-01
Zoro #
G1377275
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
19.31 in
Overall Height
15.62 in
Outlet Size
13/16 in (F)
Tube Inside Dia.
13/16 in
Overall Width
12.31 in
Inlet Size
13/16 in (F)NPT

Details

Item
Vacuum Pump
HP
1 hp
Voltage
115/230V AC
Phase
1
Weight
156 lb
Amps AC
11.0/5.5
Displacement
10.6 cfm
End Vacuum
29.9 in Hg
Max. dBA
60
NPT Inlet
1"
Valve Type
Bleed
Application
Ammonia Chillers, Electrical Transformer Evacuation
Includes
Centering Ring Assembly, Conduit Wiring, Hinged Clamp, Hose Adapter, Synthetic Oil
Intake Male SAE Flare
ISO - NW 25
Hz
60
Filter
No
Oil Capacity
80 oz
Ultimate Pressure Torr
1 x 10-4
RPM
525 RPM
Ballast
Yes
Finish
Paint
Motor Type
ODP
Outlet Hose/Tube ID
13/16 in
Output Power
1 hp
Inlet Type
NPT
Pump Type
Rotary Vane Vacuum
Vane Material
Cast Iron
Frequency
50/60 Hz
Enclosure Type
Open Dripproof
Current Rating
11.0 A, 5.5 A
Lead-Free
No
Maximum Operating Pressure
0 psi
Maximum Speed
525 RPM
Outlet Gender
(F)
Fluid Compatibility
Oil
Sound Level
60 dBA
Maximum Discharge Pressure
0 mbar
Runs Dry
No
Maximum Flow Rate
10.6 cfm
Maximum Vacuum
0.0001 torr
Inlet Gender
(F)

Description

Vacuum Pump, Output Power 1 hp, Phase Single, Voltage 115/230V AC, Maximum Flow Rate 10.6 cfm, Maximum Vacuum 0.0001 torr, Inlet Size 13/16 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 13/16 in, Outlet Gender Female, Application Ammonia Chillers, Electrical Transformer Evacuation, Maximum Discharge Pressure 0 mbar, Maximum Operating Pressure 0 psi
