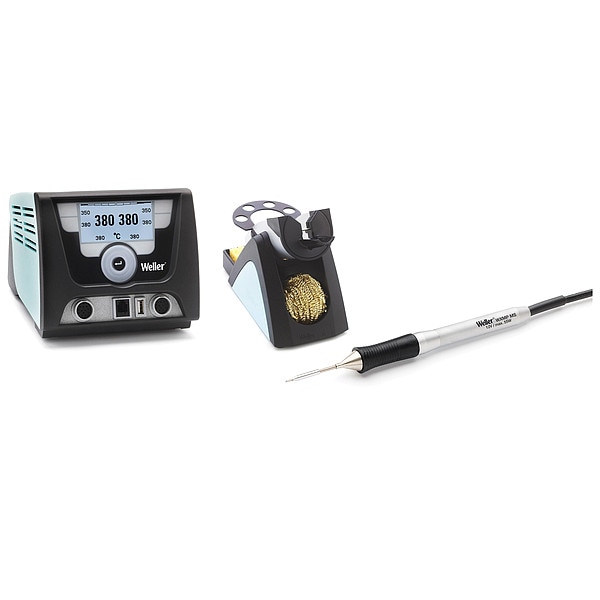

Weller Soldering Station WX2023N - main

Soldering Station

  • Mfr # WX2023N

  • Zoro # G901779057

product price: $1,115.99
/ea
Free Shipping & Returns

Key Features

Features
2 Channels for Simultaneous Work of 2 Tools with Intelligent Tool Detection, 2-in-1 Safety Rest for Wet and Dry Tip Cleaning, Extremely Fast Heat-Up Time: 3 Sec, for High Precision Micro Soldering Applications. Component Size M to L, Intelligent Iron with Motion Sensor and Integrated Data Storage, Station Works as a Benchtop Controller to Control Tips, Tools, Fume Extraction and Peripheric Tools, Toolless Tip Change, Traceability Ready
Series
WX
Standards
IPC, MIL-SPEC
Overall Width
6.06 in
Overall Height
5.31 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WX2023N
Zoro #
G901779057
UPC #
037103344212
Country of Origin
Mexico

Dimensions

Overall Width
6.06 in
Overall Height
5.31 in
Overall Depth
6.85 in

Details

Item
Soldering Station
Features
2 Channels for Simultaneous Work of 2 Tools with Intelligent Tool Detection, 2-in-1 Safety Rest for Wet and Dry Tip Cleaning, Extremely Fast Heat-Up Time: 3 Sec, for High Precision Micro Soldering Applications. Component Size M to L, Intelligent Iron with Motion Sensor and Integrated Data Storage, Station Works as a Benchtop Controller to Control Tips, Tools, Fume Extraction and Peripheric Tools, Toolless Tip Change, Traceability Ready
Series
WX
Standards
IPC, MIL-SPEC
Station Power Consumption
200 W
Control Type
Touch Screen, Turn Click Wheel
Handpiece Style
Soldering Iron
Product Type
Complete Station
Handpiece Power Consumption
55 W
Operating Voltage
120V
Operating Temperature (Maximum)
850 Degrees F
Operating Temperature (Minimum)
200 Degrees F
Temperature Accuracy
+/-9 Degrees C
Number of Channels
2
Display Type
Digital with Touchscreen
Handpiece
WXMP MS
Power Unit Manufacturer Model Number
WX1N
Compatible Handpiece Manufacturer Model Number
WXMP, WXMP-MS, WXPP, WXPP-MS, WXUP-MS
Temperature Stability
+/-2 Degrees C
Compatible Tip Series
RT-MS, RTM MS
ESD Safe
Yes
Time to Maximum Temperature
3 sec

Description

Soldering Station, ESD Safe Yes, Handpiece Style Soldering Iron, Number of Channels 2, Station Power Consumption 200 W, Operating Temperature (Minimum) 200 Degrees F, Operating Temperature (Maximum) 850 Degrees F, Handpiece WXMP MS, Product Type Soldering Station, Series WX, Compatible Handpiece Manufacturer Model Number WXMP, WXMP-MS, WXPP, WXPP-MS, WXUP-MS, Compatible Tip Series RT-MS, RTM MS, Control Type Touch Screen, Turn Click Wheel, Display Type Digital with Touchscreen
