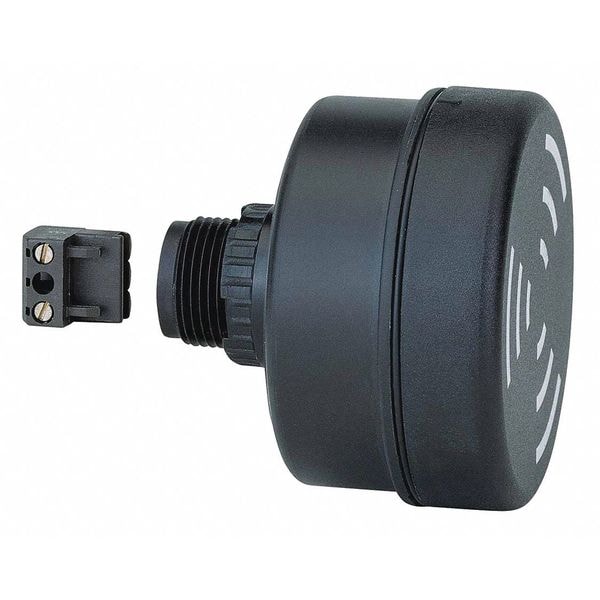

Multi-Tone Sounder, Buzzer, Continuous/Pulse, 115V AC, 100 dB, Polycarbonate/ABS Blend, Black

  • Mfr # 11000067

  • Zoro # G6030503

product price:
$
183.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Polycarbonate/ABS Blend
Mounting
Surface, Wall
Diameter
2.8281 in
Color
Black
Audible Alarm Type
Buzzer
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
11000067
Zoro #
G6030503
UPC #
-
Country of Origin
Germany

Dimensions

Diameter
2.8281 in
Width
2.8281 in
Depth
0.9375 in
Height
2.3281 in
Overall Depth
59 mm
Overall Diameter
72 mm

Details

Item
Multi-Tone Sounder
Housing Material
Polycarbonate/ABS Blend
Mounting
Surface, Wall
Color
Black
Audible Alarm Type
Buzzer
Voltage
115V AC
Standards
CE, cULus Listed, EAC, RoHS, UKCA, WEEE
Indoor/Outdoor
Indoor, Outdoor
Decibels
100 dB
Sound Pattern
Continuous/Pulse
Operating Temp.
-4 Degrees to 122 Degrees F
Vibrating
No
Features
Specific Sound Output Setting
Flashes per Minute
0
Housing Color
Black
Visual Indicator Type
No Visual Indicator
Power Source
Wire
Wattage
0.73 W
Product Type
Tone Generator
Material
ABS, Polycarbonate
Rating
IP 65
Alarm Volume @ 1 m - Maximum
100 dBA
Vibration
No Vibration
Sound Principle
Resonating
Volume Selection
Fixed Volume
Alarm Volume @ 1 m - Minimum
100 dB
Alarm Volume @ 10 ft - Minimum
100 dB
Sound Continuity
Continuous, Pulse
NEMA Rating
NEMA 4X
For Location
Indoor, Outdoor
Operating Temperature - Maximum
50 Degrees C
Number of Sound Patterns
8
IP Rating
IP65
Sound Style
Tone
Alarm Volume @ 10 ft - Maximum
100 dB
Operating Temperature - Minimum
-20 Degrees C
Control Protocol
Direct Wire
Connection Type
Screw Terminal
Mounting Style
Surface Mount
Includes Mounting Hardware
Mounting Hardware Included
Operating Current
0.040 A
Operating Voltage
115V AC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

Audible Alarm Type Buzzer, Visual Indicator Type No Visual Indicator, Voltage 115V AC, Decibels 100 dB, Sound Pattern Continuous/Pulse, Indoor/Outdoor Indoor, Outdoor, Mounting Surface, Wall, Height 2.3281 in, Width 2.8281 in, Depth 0.9375 in, Diameter 2.8281 in, Vibrating No, Housing Color Black, Housing Material Polycarbonate/ABS Blend, Flashes per Minute 0, Rating IP 65, Operating Temp. -4 Degrees to 122 Degrees F, Features Specific Sound Output Setting
