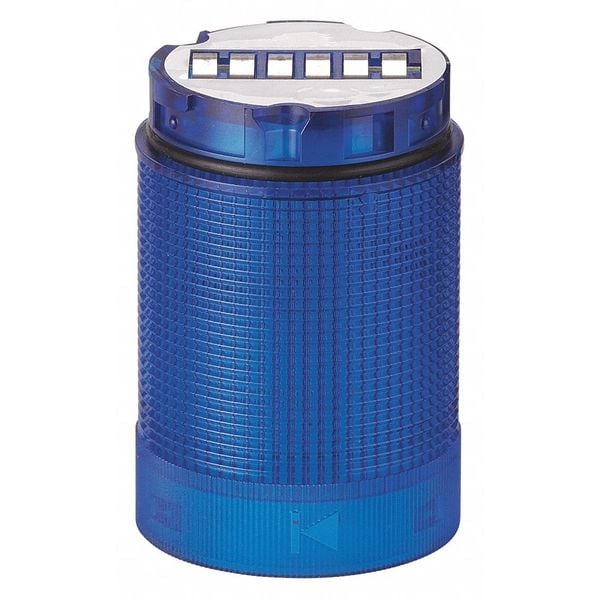

Tower Light Module, 24V AC, 24V DC, Blue, 40 mm Dia., 59 mm Height, LED, KombiSIGN 40 Series

  • Mfr # 63451075

  • Zoro # G6043270


product price: $47.59
/ea

Key Features

Standards
CE, cULus Listed, EAC, RoHS, UKCA, WEEE
Voltage
24V AC, 24V DC
Overall Diameter
40 mm
Housing Material
Polycarbonate
Lighting Technology
LED
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
63451075
Zoro #
G6043270
UPC #
-
Country of Origin
Germany

Dimensions

Overall Diameter
40 mm
Overall Height
59 mm
Width
1.58 in
Length
1.578 in
Diameter
40 mm
Height
2.312 in

Details

Item
Tower Light Module
Standards
CE, cULus Listed, EAC, RoHS, UKCA, WEEE
Voltage
24V AC, 24V DC
Housing Material
Polycarbonate
Lighting Technology
LED
Current Drawn
0.04A
Flashes per Minute
60
Color
Blue
Lens Material
Polycarbonate
Tower Light Series
KombiSIGN 40
For Use With
KombiSIGN 40 Series Stacklights
Lens Design
Fresnel
NEMA Rating
NEMA 12
Sound Modes
Continuous, Pulse
Operating Temp.
-22 Degrees to 140 Degrees F
Tower Light Color
Blue
Lamp Life
50,000 hr
Light Color
Blue
Operating Voltage
24V AC, 24V DC
For Location
Indoor, Outdoor
Lens Shape
Dome
Operating Temperature - Minimum
-30 Degrees C
Lifespan
50,000 hr
Number of Lamps
2
Light Source
LED
IP Rating
IP66, IP69K
Operating Current
0.030 A
Light Operating Mode
Flashing, Steady
Operating Temperature - Maximum
60 Degrees C
Compatible Series
KombiSIGN 40

Description

Tower Light Series KombiSIGN 40, Voltage 24V AC/DC, Tower Light Color Blue, Sound Modes Continuous, Pulse, Diameter 40 mm, NEMA Rating NEMA 12, Lighting Technology LED, 60 Flashes per Minute, Lamp Life 50,000 hr, Housing Material Polycarbonate, Lens Design Fresnel, Lens Material Polycarbonate, Operating Temp. -22 Degrees to 140 Degrees F, Standards CE, cULus Listed, EAC, RoHS, UKCA, WEEE, Current Drawn 0.04A, Height 2.312 in, Length 1.578 in, Width 1.58 in
