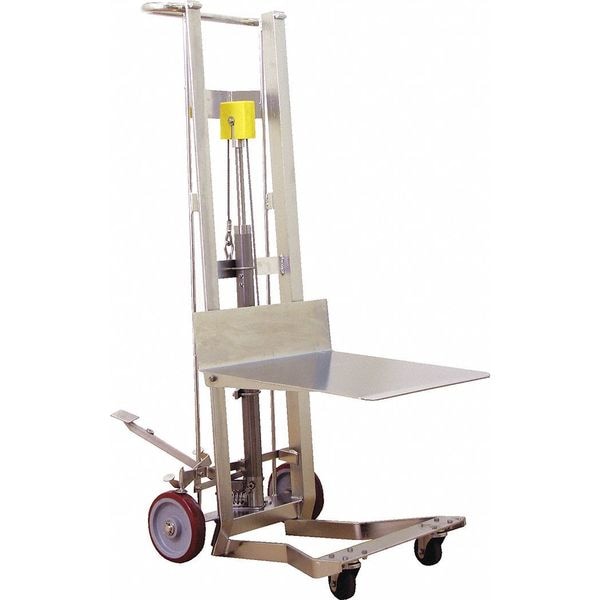

Manual Platform Lift Truck, Manual, 750 lb Load Capacity, Foot Pump Lift Control

  • Mfr # 260186

  • Zoro # G4571082

product price:  $6,965.99
/ea
Additional $160.00 delivery surcharge applies per item.
See details

Key Features

Overall Height
60 1/2 in
Overall Length
32 in
Overall Width
22 1/2 in
Color
Silver
Load Capacity
750 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
260186
Zoro #
G4571082
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
60 1/2 in
Overall Length
32 in
Overall Width
22 1/2 in
Platform Length
30 in
Front Caster Dia.
3 1/2 in
Lifting Height Min.
5 3/4 in
Lifting Height Forks Down
5 3/4 in
Lifting Height Max.
54 in
Platform Width
22 in
Rear Wheel Dia.
8 in
Manufacturers Warranty Length
1 yr
Caster Wheel Width
2 in
Overall Height with Platform Lowered
60 1/2 in
Lifting Height Range
5 3/4 in to 54 in
Minimum Lifting Height
5 3/4 in
Caster Wheel Dia.
3 1/2 in
Axle-Mounted Wheel Dia.
8 in
Base Outside Width
21 1/4 in
Overall LxWxH
32 in x 22 1/2 in x 60 1/2 in
Base Inside Width
20 in
Maximum Lifting Height
54 in
Platform LxW
30 in x 22 in
Length
32 in
Depth
60.5 in
Overall Height with Platform Raised
60 1/2 in
Wire Rope Length
32 in

Details

Color
Silver
Load Capacity
750 lb
Item
Manual Platform Lift Truck
Lift Mechanism
Hydraulic
Frame Material
304 Stainless Steel
Lift Mobility
Manual Lift
Base Legs Inside Dim.
20 in
Caster Wheel Type
Tread on Core
Invertible Forks
No
Lift Control
Foot Pump
Load Center
10 in
Lift Base Style
Fixed Frame
Base Legs Outside Dim.
21 1/4 in
Non-Marking Axle-Mounted Wheels
Yes
Axle-Mounted Wheel/Tread Material
Rubber
Caster Wheel Bearings
Ball Bearing
Wheel Configuration
(2) Axle-Mounted, (2) Swivel
Weight
175 lb
Non-Marking Casters/Wheels
Yes
Base Material
Stainless Steel
Base Style
Adjustable
Caster Wheel/Tread Material
Rubber
Operation
Manual

Description

Platform Lift Truck, Load Capacity 750 lb, Minimum Lifting Height 5 3/4 in, Maximum Lifting Height 54 in, Platform Length 30 in, Platform Width 22 in, Lift Control Foot Pump, Lift Mechanism Hydraulic, Base Style Adjustable, Base Inside Width 20 in, Base Outside Width 21 1/4 in, Load Center 10 in, Overall Height with Platform Raised 60 1/2 in, Overall Length 32 in, Overall Width 22 1/2 in, Frame Material Stainless Steel, Base Material Stainless Steel, Axle-Mounted Wheel Dia. 8 in
