Shop WESTGATE

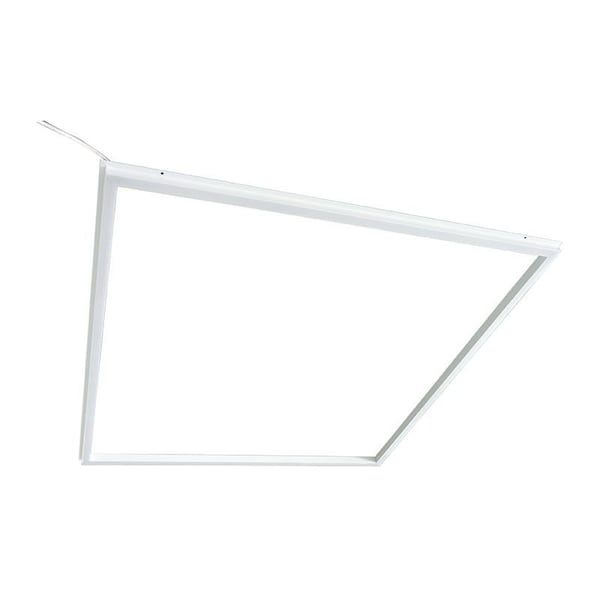

T-BAR 2X2 GRID FRAME LIGHT, TUNABLE 35/40/50K 27/35/40W 4000L 0-10V DIM. UL, 27W/35W/40W, White

  • Mfr # TGL-2X2-MCTP

  • Zoro # G724885713

product price:
$
87.79
/ea

Key Features

Dimmable
0~10V Dimmable
Lumens
150LM/W
Temp. Range
-13°F~140°F
Length
23.74 in
Lighting Technology
2835SMD
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TGL-2X2-MCTP
Zoro #
G724885713
UPC #
845060058420
Country of Origin
China

Dimensions

Length
23.74 in
Height
0.59 in
Width
23.74 in

Details

Dimmable
0~10V Dimmable
Lumens
150LM/W
Temp. Range
-13°F~140°F
Lighting Technology
2835SMD
Rated Life
50,000hr
Color Temperature
3500K/4000K/5000K
CRI
>80
Weight
3.0 lb
Standards
UL
Item
T-Bar 2X2 Grid Frame Light
Finish
White
Fixture Wattage
27W/35W/40W
IP Rating
Damp Location
Voltage
100-277VAC
Beam Angle
120°
Material
Aluminum Shell
Power Factor
>0.9
BUG Rating
B1-U3-G1

Description

The Westgate TGL-2X2-MCTP is a t-bar 2x2 grid frame light. It delivers 150LM/W of 3500K/4000K/5000K light at 27W/35W/40W. Operates on 100-277VAC input power. Constructed of aluminum shell in a white finish. Dimming: 0-10V Dimmable. Key specifications: CRI >80, power factor >0.9, beam angle 120 Deg, operating temperature -13 DegF-140 DegF, 50,000hr rated life, Damp Location ingress protection, BUG rating B1-U3-G1. Light source: 2835SMD. Certifications: UL.
