Shop WESTWARD

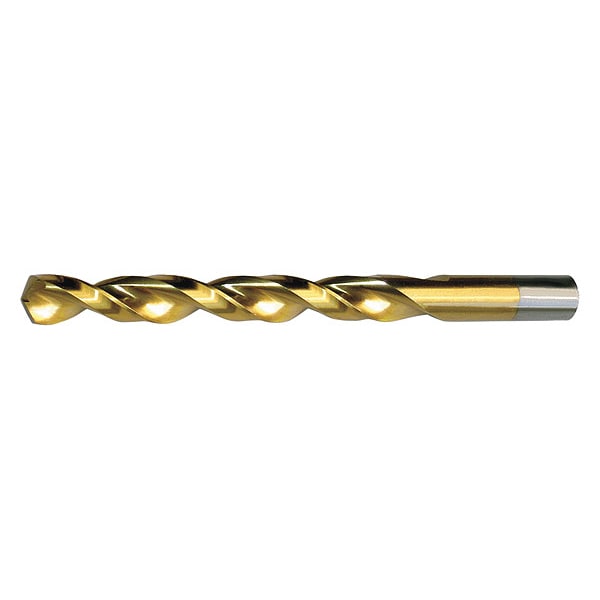

75.00mm TiN 135 Deg. Jobber Length Drill Bit

  • Mfr # 6PRY1

  • Zoro # G4132676

product price:  $6.29
/ea

Key Features

Overall Length
75 mm
Drill Bit Point Angle
135 Degrees
Number of Flutes
2
Shank Dia.
5/32 in
Material - Machining
Cobalt
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6PRY1
Zoro #
G4132676
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
75 mm
Drill Bit Size
4 mm
Shank Dia.
5/32 in
Drill Bit Dimension Type
Metric
Flute Length
43 mm
Drill Length Class
Jobber-Length
Maximum Drilling Depth
1 17/64 in
Depth:Dia. Ratio
4xD
Shank Length
32 mm
Drill Diameter Tolerance
+0.0000 in/-0.0007 in
Wire Rope Length
75 mm

Details

Item
Jobber Length Drill Bit
Drill Bit Point Angle
135 Degrees
Number of Flutes
2
Material - Machining
Cobalt
Cutting Direction
Right Hand
Finish - Machining
TiN
Shank Type - Machining
Straight
Flute Type
Parabolic
Number of Pieces
1
Drill Bit Grouping
Drill Bit
Application
Tool Steels, Carbon Steel, Plastic, Cast Iron
Decimal Equivalent
0.1575
List Number
Westward
Standards
DIN 338
Coolant Fed
Non-Coolant Through
Drill Bit Point Type
Split Point
Measurement System
Metric
Primary Material Application ISO Code
K, N, P
Spiral Direction
Right Hand
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Helix Angle
35 Degrees to 45 Degrees
Number of Coolant Holes
0
Aircraft Drill
No
Sheeter Drill
No
Web Thinning
Thinned
Material Grade - Machining
High Performance
Secondary Material Application ISO Code
N
Helix Angle - Maximum
45 Degrees
Secondary Material Application
Aluminum, Brass, Bronze, Copper
Helix Angle - Minimum
35 Degrees

Description

Jobber Length Drill Bit, Drill Bit Size 4 mm, Drill Bit Point Angle 135 Degrees , Cobalt, TiN, Decimal Equivalent 0.1575, Metric, Drill Bit Point Type Split Point, Non-Coolant Through, Number of Coolant Holes 0
