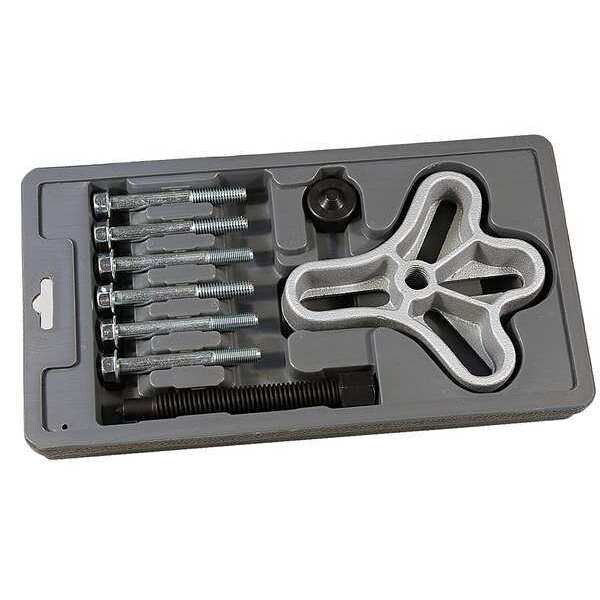

Flange Puller, Spread 1-1/2 to 4-5/8in.

Mfr # 29FX49
Zoro # G7530467

58.29

Key Features

Spread (In.)

1-1/2 to 4-5/8

Screw Size

5/8"-10

Reach

Bolt Circle Dia. (In.)

1-1/2 to 4-5/8

Application

ApplicationPulls Harmonic Balancers, Timing Gears, and Other Parts Having Two or Three Tapped Holes

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 29FX49
Zoro #: G7530467
UPC #: 190735788882
Country of Origin: Taiwan, Province of China

Dimensions

Screw Size: 5/8"-10
Bolt Circle Dia. (In.): 1-1/2 to 4-5/8
Flange Sizes Included: 1 1/2 in to 4 5/8 in
Forcing Screw Length: 140 mm
Screw Length1: 10 in
Screw Size1: 5/8"-10
Forcing Screw Size: 5/8"-10
Cap Screw Sizes Included: 14mm(9/16") Hex. Head, 14mm(9/16") Hex. Head3/8"-24 Male Thread x 3"L(x3), 3/8"-16 Male Thread x3"L(x3)
Screw Length: 10 in

Details

Item: Flange Puller
Spread (In.): 1-1/2 to 4-5/8
Reach: 2"
Application: ApplicationPulls Harmonic Balancers, Timing Gears, and Other Parts Having Two or Three Tapped Holes
Includes: (2) Cap Screw Size 3/8 in-16 x 3 in Long, (3) Cap Screw size 3/8 in-24 x 3 in Long
For Use With: Open End Wrench or Adjustable Wrench
Includes Push-Pullers: Yes
Number of Pieces: 8
Reach - Minimum: 2 in
Includes Slide Hammer: No
Includes Bearing Splitters: No
Pulling Capacity1: 11 ton
Jaw Spread - Maximum: 4 5/8 in
Includes Tip Protector: Yes
Reach - Maximum: 2 in
Features: Pulls Harmonic Balancers, Timing Gears, and Other Parts Having Two or Three Tapped Holes
Jaw Spread - Minimum: 1 1/2 in
Compatible with Product Type: Open End Wrench or Adjustable Wrench
Pulling Capacity: 11 ton

Description

Flange Puller, Jaw Spread - Maximum 4 5/8 in, Jaw Types Included Not Applicable, Pulling Capacity 11 ton, Reach - Maximum 2 in, Screw Length 10 in, Screw Size 5/8 In.-10, Includes (2) Cap Screw Size 3/8 in-16 x 3 in Long, (3) Cap Screw size 3/8 in-24 x 3 in Long, Jaw Sizes Included Not Applicable, Jaw Spread - Minimum 1 1/2 in, Number of Pieces 8, Reach - Minimum 2 in, Bearing Splitter Sizes Included Not Applicable
