  11. G HSS Black Oxide 135 Deg. Jobber Length Drill Bit

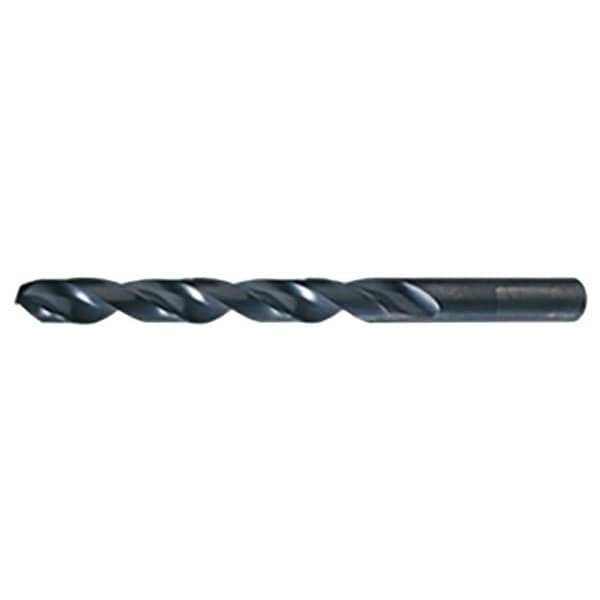

Westward G HSS Black Oxide 135 Deg. Jobber Length Drill Bit 5PLW2 - main

G HSS Black Oxide 135 Deg. Jobber Length Drill Bit

  • Mfr # 5PLW2

  • Zoro # G0701933

product price: $4.69
/ea

Key Features

Overall Length
4 1/8 in
Drill Bit Point Angle
135 Degrees
Number of Flutes
2
Shank Dia.
1/4 in
Material - Machining
High Speed Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5PLW2
Zoro #
G0701933
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
4 1/8 in
Drill Bit Size
G
Shank Dia.
1/4 in
Drill Bit Dimension Type
Letter
Flute Length
2 7/8 in
Drill Length Class
Jobber-Length
Maximum Drilling Depth
2 5/32 in
Shank Length
1 1/4 in
Depth:Dia. Ratio
5xD
Drill Diameter Tolerance
+0.0000 in/-0.0010 in

Details

Item
Jobber Length Drill Bit
Drill Bit Point Angle
135 Degrees
Number of Flutes
2
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Finish - Machining
Black Oxide
Shank Type - Machining
Straight
Number of Pieces
1
Decimal Equivalent
0.2610
Application
For Drilling Holes into Carbon Steel, Plastic and Cast Iron Materials
Flute Type
Spiral
Drill Bit Grouping
Drill Bit
List Number
Westward
Standards
ANSI
Coolant Fed
Non-Coolant Through
Material Grade - Machining
High Performance
Drill Bit Point Type
Split Point
Measurement System
Letter
Primary Material Application
Cast Iron, Steel
Primary Material Application ISO Code
K, P
Spiral Direction
Right Hand
Web Construction
Conventional Point
Secondary Material Application
Aluminum, Brass, Bronze, Copper
Helix Angle
21 Degrees to 34 Degrees
Web Thinning
Thinned
Aircraft Drill
No
Sheeter Drill
No
Number of Coolant Holes
0
Secondary Material Application ISO Code
N
Helix Angle - Minimum
21 Degrees
Helix Angle - Maximum
34 Degrees

Description

Jobber Length Drill Bit, Drill Bit Size G, Drill Bit Point Angle 135 Degrees , High Speed Steel, Black Oxide, Decimal Equivalent 0.2610, Letter, Drill Bit Point Type Split Point, Non-Coolant Through, Number of Coolant Holes 0

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
