  9. Infrared Thermometer, Adjustable 0.10 to 1.00, -58 Degrees to 1472 Degrees F, LCD

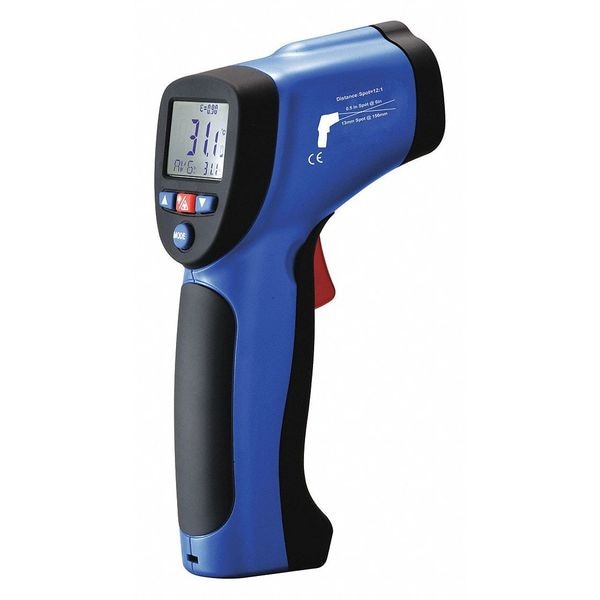

Westward Infrared Thermometer, Adjustable 0.10 to 1.00, -58 Degrees to 1472 Degrees F, LCD 54TZ30 - main

Infrared Thermometer, Adjustable 0.10 to 1.00, -58 Degrees to 1472 Degrees F, LCD

  • Mfr # 54TZ30

  • Zoro # G5574368

product price: $82.79
/ea
Free Shipping & Returns

Key Features

Focus Spot Size and Distance - Infrared
1 in @ 12 in
Temp. Range (F) - Infrared
-58 Degrees to 1472 Degrees
Emissivity
Adjustable 0.10 to 1.00
Temp. Accuracy (F) - Infrared
+/-9.0 Degrees From -58.0 Degrees to -4.0 Degrees , +/-1.5% of Reading or +/-3.6 Degrees Whichever is Greater from -4.0 Degrees to 392.0 Degrees , +/-2.0% of Reading or +/-3.6 Degrees Whichever is Greater from 392.0 Degrees to 1000.0 Degrees , +/-3.5% of Reading or +/-9.0 Degrees Whichever is Greater from 1000.0 Degrees to 1472.0 Degrees
Temp. Accuracy (C) - Infrared
+/-5.0 Degrees From -50.0 Degrees to -20.0 Degrees , +/-1.5% of Reading or +/-2.0 Degrees Whichever is Greater from -20.0 Degrees to 200.0 Degrees , +/-2.0% of Reading or +/-2.0 Degrees Whichever is Greater from 200.0 Degrees to 538.0 Degrees , +/-3.5% of Reading or +/-5.0 Degrees Whichever is Greater from 538.0 Degrees to 800.0 Degrees
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
54TZ30
Zoro #
G5574368
UPC #
00194484307585
Country of Origin
China

Dimensions

Focus Spot Size and Distance - Infrared
1 in @ 12 in
Manufacturers Warranty Length
1 yr
Manufacturer Warranty Length
1 yr
Battery Size
9V

Details

Item
Infrared Thermometer
Temp. Range (F) - Infrared
-58 Degrees to 1472 Degrees
Emissivity
Adjustable 0.10 to 1.00
Temp. Accuracy (F) - Infrared
+/-9.0 Degrees From -58.0 Degrees to -4.0 Degrees , +/-1.5% of Reading or +/-3.6 Degrees Whichever is Greater from -4.0 Degrees to 392.0 Degrees , +/-2.0% of Reading or +/-3.6 Degrees Whichever is Greater from 392.0 Degrees to 1000.0 Degrees , +/-3.5% of Reading or +/-9.0 Degrees Whichever is Greater from 1000.0 Degrees to 1472.0 Degrees
Temp. Accuracy (C) - Infrared
+/-5.0 Degrees From -50.0 Degrees to -20.0 Degrees , +/-1.5% of Reading or +/-2.0 Degrees Whichever is Greater from -20.0 Degrees to 200.0 Degrees , +/-2.0% of Reading or +/-2.0 Degrees Whichever is Greater from 200.0 Degrees to 538.0 Degrees , +/-3.5% of Reading or +/-5.0 Degrees Whichever is Greater from 538.0 Degrees to 800.0 Degrees
Calibration Certificate Included
No
Data Logging - Instrument
No
Display - IR Camera
LCD
Operating Temp. Range
32 Degrees to 122 Degrees F
Memory
Max/Min/Avg/Dif
Temperature Alarm - Thermometer
High, Low
Standards
21 CFR 1040.10, CE, FCC
Temp Range (F) - Probe and Other
Probe -58 Degrees to 2498 Degrees
Item - Infrared Thermometer
Infrared Thermometer
Laser Sighting - Infrared
Dual
Temp. Range (C) - Infrared
-50 Degrees to 800 Degrees
Repeatability
+/-1.0% of Reading or +/-1 Degrees C
Resolution
0.1 Degrees F/C
Memory - Instrument
Avg., Dif., Max., Min
Spectral Response - Infrared
8.0 to 14.0um
Trigger
Yes
Response Time
1 sec
Special Features
Dual Laser Targeting Indicates Ideal Measuring Distance
Temp Range (C) - Probe and Other
Probe -50 Degrees to 1370 Degrees
Alarm Indication
High/Low
Includes
Canvas Bag, K Type Thermocouple Probe
Data Hold
Yes
Battery Type
9V
Data Logging
No
Environmental Applications - Air Conditioners and Heat Pumps
Non-Medical
Features
Use Laser Sighting to Measure Surface Temperatures
Emissivity Adjustability
Adjustable
Minimum Temperature Measured Degrees F
-58 Degrees F
Digital Display Screen Type
LCD
Accuracy Degrees F
+/-1.5% of Reading or +/-3.6 Degrees Whichever is Greater (-4.0 Degrees to 392.0 Degrees ); +/-2.0% of Reading or +/-3.6 Degrees Whichever is Greater (392.0 Degrees to 1,000.0 Degrees ); +/-3.5% of Reading or +/-9.0 Degrees Whichever is Greater (1,000.0 Degrees to 1472.0 Degrees ); +/-9.0 Degrees (-58.0 Degrees to -4.0 Degrees )
Resolution Degrees C
0.1 Degrees C
Probe Maximum Temperature Measured Degrees F
2,498 Degrees F
Probe Minimum Temperature Measured Degrees C
-50 Degrees C
Maximum Temperature Measured Degrees F
1,472 Degrees F
Maximum Emissivity Setting
1.00
Accuracy Degrees C
+/-1.5% of Reading or +/-2.0 Degrees Whichever is Greater (-20.0 Degrees to 200.0 Degrees ); +/-2.0% of Reading or +/-2.0 Degrees Whichever is Greater (200.0 Degrees to 538.0 Degrees ); +/-3.5% of Reading or +/-5.0 Degrees Whichever is Greater (538.0 Degrees to 800.0 Degrees ); +/-5.0 Degrees (-50.0 Degrees to -20.0 Degrees )
Calibration Certificate Type
Not Certified
Probe Minimum Temperature Measured Degrees F
-58 Degrees F
Minimum Emissivity Setting
0.10
Maximum Operating Temperature Degrees F
122 Degrees F
Resolution Degrees F
0.1 Degrees F
Minimum Temperature Measured Degrees C
-50 Degrees C
Secondary Measuring Method
Probe
Minimum Operating Temperature Degrees F
32 Degrees F
Probe Maximum Temperature Measured Degrees C
1,370 Degrees C
Number of Batteries Required
1
Laser Sighting Type
Dual
Battery Voltage
9V
Body Style
Full Size
Batteries Included
Yes
Testing Functions
Average, Difference, Maximum Temperature, Minimum Temperature
Maximum Temperature Measured Degrees C
800 Degrees C

Description

Infrared Thermometer, Laser Sighting Type Dual, Secondary Measuring Method Probe, Emissivity Adjustability Adjustable, Minimum Emissivity Setting 0.10, Maximum Emissivity Setting 1.00, Minimum Temperature Measured Degrees F -58 Degrees F, Maximum Temperature Measured Degrees F 1,472 Degrees F, Minimum Operating Temperature Degrees F 32 Degrees F, Maximum Operating Temperature Degrees F 122 Degrees F, Body Style Full Size, Digital Display Screen Type LCD

Restrictions

Hazardous material
