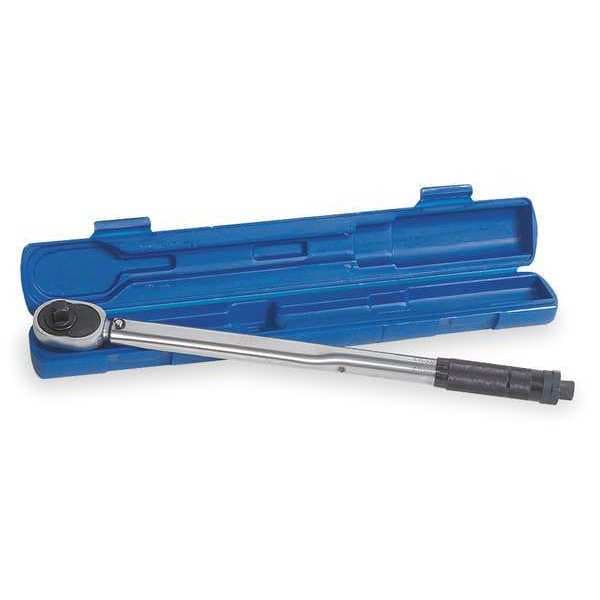

Micrometer Torque Wrench, 1/2Dr, CW

  • Mfr # 4DA96

  • Zoro # G1000876


product price: $65.19
/ea

Key Features

Drive Size
1/2 in
Head Type
Standard
Overall Length
18 in
Includes
(1) Case
Accuracy
+/-4% CW
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4DA96
Zoro #
G1000876
UPC #
190735847916
Country of Origin
Taiwan, Province of China

Dimensions

Drive Size
1/2 in
Overall Length
18 in
Overall Width
1 27/32 in

Details

Item
Micrometer Torque Wrench
Head Type
Standard
Includes
(1) Case
Accuracy
+/-4% CW
Handle
JISG3132 (SPH-T1)
Material
Alloy Steel
Handle Type
Kurled
Handle Material
Alloy Steel
Torque Measurement Type
Foot-Pound, Newton-Meter
Rotation
Clockwise
Ratcheting
Yes
Standards
ASME
Tether Capable
Tether Capable
Visual/Audible Indicators
Audible Click
Primary Scale Increments
1 ft-lb
Secondary Scale Increments
1.35 N-m
Meets/Exceeds
ANSI B107.4
Teeth
24
Secondary Scale Range
13.6 N-m to 203.5 N-m
Number of Geared Teeth
24
Calibration Certificate Included
No
Primary Scale Range
10 ft-lb to 150 ft-lb
Min. Arc Swing
15 Degrees
Extended Data Testing
Yes, ASME B 107.300
Handle Color
Black
Corrosion Resistant
No
Weight
3.75 lb
Torque Range
10 ft-lb to 150 ft-lb
Secondary Scale Minimum Torque
13.6 N-m
Torque Setting
Adjustable
Torque Adjustability
Adjustable
Primary Scale Minimum Torque
10 ft-lb
Insulated
No
Head Movement
Adjustable
Clockwise Accuracy
+/- 4%
Counterclockwise Accuracy
+/- 4%
Primary Scale Maximum Torque
150 ft-lb
Secondary Scale Maximum Torque
203.5 N-m
Dual Scale
Yes
Nonsparking
No
Finish
Chrome
Tether Style
Tether Capable
Torque Increments
1 ft-lb, 1.35 N-m
Torque Limiting Mechanism
Click-Type

Description

When you need to apply the proper amount of torque to a fastener, use the Westward 4DA96 Micrometer Torque Wrench. It has a range of 10 ft-lb to 150 ft-lb and an accuracy of +/-4% CW. The JISG3132 handle is comfortable to hold and fits well in your hand. The micrometer torque wrench has an overall length of 18 in., with a 1 27/32 in. width at its widest point. The drive size is 1/2 in.. This alloy steel micrometer torque wrench also features secondary scale ranges from 13.6 Nm to 203.5 Nm, as well as primary scales from 10 ft-lb to 150 ft-lb. You will be able to get accurate measurements with the Westward 4DA96 Micrometer Torque Wrench because it has all the quality you expect from this brand name manufacturer.
