Shop WESTWARD

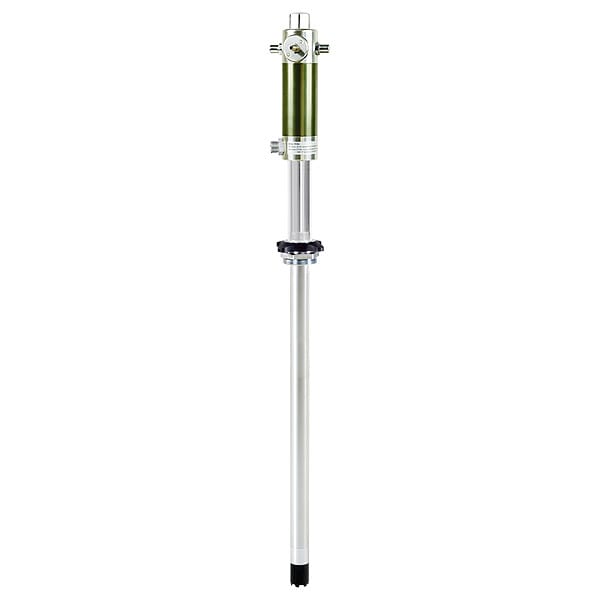

Oil Pump, Air Op, Pump Ratio 3:1, 16 gal

  • Mfr # 5TCT9

  • Zoro # G0720011

product price:  $559.99
/ea
Free Shipping & Returns

Key Features

Type
Air Operated
Air Motor Size (In.)
2-1/2
Pump Ratio
3:01
Container Size
16 gal.
Consumption @ 100 PSI
5 cfm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5TCT9
Zoro #
G0720011
UPC #
190735873021
Country of Origin
China

Dimensions

Air Motor Size (In.)
2-1/2
Container Size
16 gal.
For Container Size
15 gal, 30 gal, 55 gal
Suction Tube Length
29 1/8 in
Air Outlet Size
1 3/16 in
Air Inlet Connection Size
1/4 in

Details

Item
Air Drum Pump
Type
Air Operated
Pump Ratio
3:01
Consumption @ 100 PSI
5 cfm
Working Flow Max. (GPM)
7.5 gpm
Includes
Pump
Outlet Pressure Max. (PSI)
348 psi
Max. Air Inlet PSI
115 psi
Fluid Outlet Thread (In.)
3/4 MNPT
Air Inlet (In.)
1/4 in
For Use With
Oils Up To SAE 130
Min. Air Inlet Pressure
70 psi
Pump for Multiple Outlets
Yes
Max. Output
7.5 gpm
Discharge Connection Type
MNPT
Max. Flow Rate
7.5 gpm
Max. Oil Flow
7.5 gpm
Includes Discharge Hose
No
Includes Suction Tube
Yes
Power Source
Air
Air Consumption
7.5 cfm
Compatible Chemicals
Motor Oil
Not Recommended Chemicals
DEF, Grease
Metered
No
Wetted Materials
Buna-N, Polyurethane, Steel
Min. Air Pressure
70 psi
Includes Spout
No
For Container Type
Drum, Bucket
Discharge Tube Outlet ID
1/2 in
Includes Nozzle
No
Gear Lube
NT
Static Protection
Not Groundable
Container Cover Type Included
No Cover Included
Suction Tube OD
1 5/8 in
Chemical Compatibility
Motor Oil
Housing Finish
Annodized Zinc Plated
Air Inlet Connection Type
NPT
Meter Type Included
No Meter Included
Variable Speed
No
Maximum Outlet Pressure
348 psi
Pressure Ratio
3:1
Runs Dry
No
Mounting Bracket Included
No Mounting Bracket Included
Housing Material
Steel
Pump Connection ID
1/4 in
Suction Tube ID
3/8 in
Suction Tube Material
Steel
Pump Connection OD
1/2 in
Hazardous Location Class
Not Rated
Wetted Material
Buna-N/Polyurethane/PTFE
Maximum Air Pressure
115 psi
Self-Priming
No
Duty Cycle
Continuous
Maximum Fluid Temperature
176 Degrees F
Discharge Tube Outlet OD
1 in
Minimum Air Pressure
70 psi
Minimum Fluid Temperature
80 Degrees C
Seal Material
Buna-N¿PTFE;Polyurethane
Pump Technology
Plunger
For SAE Viscosity Grade - Maximum
130
Includes Follower Plate
No Follower Plate Included
Includes Bung Adapter
No
Pump Connection Type
FNPT
Maximum Oil Flow
7.5 gpm
Maximum Flow Rate
7.5 gpm

Description

Air Operated Drum Pump, Max. Air Pressure 115 psi, Discharge Connection Type MNPT, Air Consumption 8 cfm, Hose Length Not Applicable, Includes Discharge Hose No, Includes Suction Tube Yes, Includes Nozzle No, Includes Spout No
