Westward

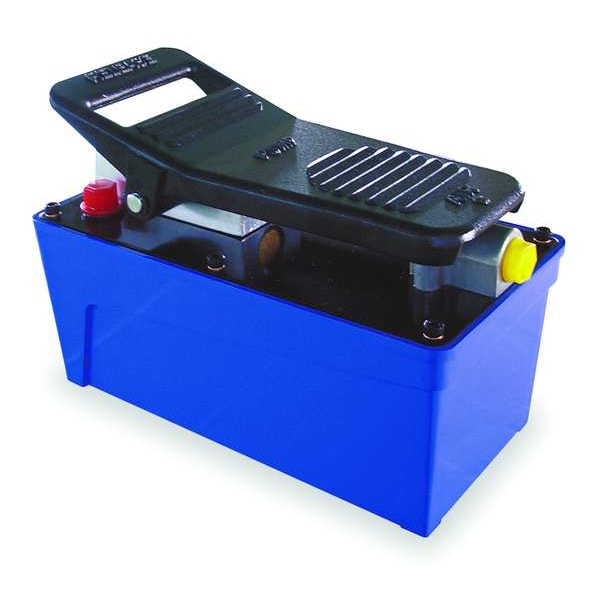

Pump, Air Treadle

product price: $377.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Oil Capacity (Cu.-In.) 91.5 cu in
  • Reservoir Capacity (Gal.) 0.4 gal
  • Oil Displacement @ 0 PSI 61.00 cu in/min
  • Oil Displacement @ 10,000 PSI 11 cu in/min
  • Operating Air PSI 90 to 175
See all product information

Product Information

Dimensions

Height (In.) 7.125 in
Width (In.) 5 in
Length (In.) 10 in
Media Intake Connection Size 3/8 in
Overall Height 7.3 in
Air Intake Connection Size 1/4 in
Overall Width 5.3 in
Overall Length 10.2 in

Details

Item Hydraulic Pump
Oil Capacity (Cu.-In.) 91.5 cu in
Reservoir Capacity (Gal.) 0.4 gal
Oil Displacement @ 0 PSI 61.00 cu in/min
Oil Displacement @ 10,000 PSI 11 cu in/min
Operating Air PSI 90 to 175
Air Consumption (SCFM) 7.8
Actuation Type Foot
Air Inlet NPT (In.) 1/4
Built-In By-pass System Protects the Unit from Pressure Overload
Capacity (PSI) 10,000
Type Air Powered
Fluid Port NPT (In.) 3/8
Features Internal Relief Valves
Displacement @ 700 psi 46 2/5 cu in/min
Sound Level - Minimum 70 dBA
Displacement @ No Load 61 cu in/min
Displacement @ 5000 psi 20 cu in/min
Reservoir Capacity 92 cu in
Media Intake Connection Type NPTF
Flow Rate - Maximum 11 cu in/min
Sound Level - Maximum 85 dBA
Operating Pressure - Maximum 10,000 psi
Air Intake Connection Type NPT
Treadle Design Two Position
Air Intake Pressure - Maximum 175 psi
Air Consumption - Maximum 7.8 scfm

Description

Hydraulic Pump, Reservoir Capacity 92 cu in, Air Intake Pressure - Maximum 175 psi, Air Intake Connection Size 1/4 in, Operating Pressure - Maximum 10,000 psi, Displacement @ 100 psi Not Applicable, Displacement @ 5000 psi 20 cu in/min, Displacement @ 10,000 PSI 11 cu in/min, Sound Level - Maximum 85 dBA, Control Valve Type Not Applicable, Actuation Type Foot, Air Consumption - Maximum 7.8 scfm, Air Intake Connection Type NPT, Control Valve Function Not Applicable
