  13. Vernier Caliper, 0-6 In, 1.6 In D

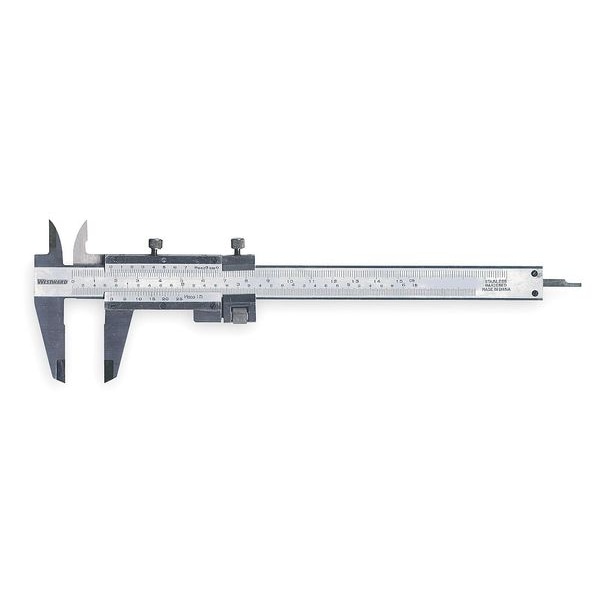

Westward Vernier Caliper, 0-6 In, 1.6 In D 4KU77 - main

Vernier Caliper, 0-6 In, 1.6 In D

  • Mfr # 4KU77

  • Zoro # G3236597

product price: $68.49
/ea

Key Features

Range (In.)
0 to 6
Graduations (In.)
0.001
Jaw Depth (In.)
1.76
Material
Hardened Stainless Steel
Includes
Fitted Case
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4KU77
Zoro #
G3236597
UPC #
190735850480
Country of Origin
China

Dimensions

Jaw Depth (In.)
1.76
Jaw Depth
1 3/4 in
Measures Depth
Yes
Depth Rod Shape
Rectangular
Dimension Type
Inch/Metric
Jaw Depth - Upper Jaw
0.63 in
Measures Outside Dimension
Yes
Measures Inside Dimension
Yes

Details

Item
4-Way Vernier Caliper
Range (In.)
0 to 6
Graduations (In.)
0.001
Material
Hardened Stainless Steel
Includes
Fitted Case
Finish
Satin Chrome
Graduations (mm)
0.02
Measures
Outside, Inside, Depth and Step
Accuracy Rating
+/-0.001 in /0.03mm
Range (mm)
0 to 150
Measurements
4-Way
Case Included
Yes
Minimum Measurement - Fractional Inch
0 in
Jaw Actuation Type
Slide
Graduations
0.001 in
Caliper Material
Stainless Steel
Range
0 in to 6 in, 0 mm to 150 mm
Case Type
Plastic
Graduations - Upper Scale
0.02 mm
Jaw Shape
Knife-Edge Jaw
Minimum Measurement - Decimal Inch
0 in
Maximum Measurement - mm
150 mm
Graduations - Lower Scale
0.001 in
Minimum Measurement - mm
0 mm
Maximum Measurement - Fractional Inch
6 in
Accuracy
+/- 0.001 in, +/- 0.03 mm
Maximum Measurement - Decimal Inch
6 in
Measures Step
Yes
Inches Measured - Maximum
6 in
Millimeters Measured - Minimum
0 mm
Measurement Type
Depth, Inside, Outside, Step
Millimeters Measured - Maximum
150 mm
Inches Measured - Minimum
0 in

Description

4-Way Vernier Caliper, Range 0 in to 6 in, 0 mm to 150 mm, Graduations 0.001 in, Accuracy +/- 0.001 in, +/- 0.03 mm, Caliper Material Stainless Steel, Dimension Type Inch/Metric, Graduations - Lower Scale 0.001 in, Graduations - Upper Scale 0.02 mm, Jaw Actuation Type Slide, Jaw Depth 1 3/4 in, Maximum Measurement - Decimal Inch 6 in, Maximum Measurement - Fractional Inch 6 in, Maximum Measurement - mm 150 mm, Measurements 4-Way, Measures Depth Yes, Measures Inside Dimension Yes
