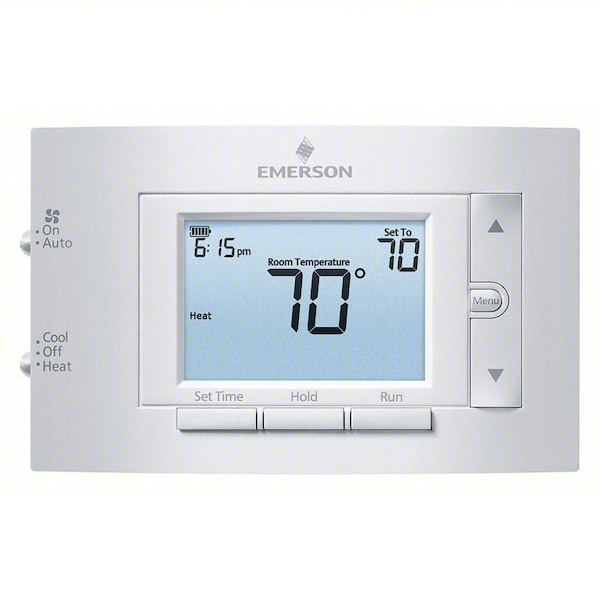

White-Rodgers 80 Series Thermostats, 7 Programs, 2 H, 1 C, Wall Mount, Hardwired/Battery, 24VAC 1F83H-21PR - main

80 Series Thermostats, 7 Programs, 2 H, 1 C, Wall Mount, Hardwired/Battery, 24VAC

  • Mfr # 1F83H-21PR

  • Zoro # G3713538

product price: $62.99
/ea

Key Features

Voltage
24VAC
Stages Heat
2
Mounting Type
Horizontal
Mounting Location
Wall
Color
Gray
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1F83H-21PR
Zoro #
G3713538
UPC #
786710551666
Country of Origin
Mexico

Dimensions

Height
3 3/4"
Width
6"
Display Size
4.81 sq in
Depth
1 1/8 in
Overall Height
3 3/4 in
Overall Depth
1 1/8 in
Digit Size
Easy Read
Overall Width
6 in

Details

Item
80 Series Thermostats
Voltage
24VAC
Stages Heat
2
Mounting Type
Horizontal
Mounting Location
Wall
Color
Gray
Control Range
45 Degrees to 99 Degrees F
System Switching
Auto-Heat-Cool-Off
Stages Cool
1
Dual Transformer Compatible
Yes
Power Method
Hardwired/Battery
750mV Compatible
No
Programs per Week
7
Temperature Limiting
Yes
For Use With
Heating and Cooling
Battery Backup
Yes
Agency Compliance
Energy Aware
Features
High Contrast Display
Standards
NEMA
Display Type
LCD, Backlit
Programmable Fan
No
Fan Switching
Auto-on
Key Pad Lockout
Yes
Green Certification or Other Recognition
Energy Aware
Filter Indicator
Yes
Low Battery Indicator
Yes
Temporary Program Override
Yes
Display Color
Gray
Terminal Designations
R, C, W2, E, Y, O/B, G, L
Temporary Temperature Hold
Yes
Temp. Settings per Day
4
WiFi Capability
No
Humidification Control
No
Dehumidification Control
No
Automatic Changeover
No
Batteries Included
Yes
Includes
Mounting Hardware
Control Type
Push Button
Stages
2H/2C Conventional
Smart Connectivity
No Connectivity
Contact Rating
20 to 30V AC
Number of Heating Stages - Heat Pump System
2
Thermostat Type
Low Voltage
Backlit Screen Color
Gray
Application
Heat and Cool
Differential Heat
0.5 Degrees F, 0.75 Degrees F, 1.9 Degrees F
Changeover Type
Manual
Battery Type
AA Battery
System/Fan Settings
Cool-Heat-On/Auto-On
Requires C-Wire
Yes
Housing Color
Gray
Operating Temperature Range
32 Degrees to 105 Degrees F
Temperature Differential
0.6 Degrees F, 1.2 Degrees F
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Hydronic Systems
Temperature settings per day
0, 4
Temperature Control Range
45 Degrees to 99 Degrees F
Mounting Direction
Horizontal
Minimum Operating Temperature
32 Degrees F
System Settings
Heat-Off-Cool
Operating Humidity Range
0% to 90% RH
Frequency
50 Hz, 60 Hz
Fan Settings
Auto-On
Maximum Operating Humidity
90 %
Differential Type
Adjustable
Minimum Operating Humidity
0 %
Temperature Sensitivity
+/-1 Degrees F
Sensor Location
Remote
Enclosure NEMA Rating
NEMA
Temperature Readout
Yes
Includes Batteries
Yes
Maximum Operating Temperature
105 Degrees F
Maximum Control Temperature
99 Degrees F
Programming Capability
5-1-1, 5-2, 7 Day
Backlit Type
Touch Activated or Continuous with Common Wire
Minimum Control Temperature
45 Degrees F
Differential Cool
0.9 Degrees F, 1.2 Degrees F, 1.7 Degrees F
Number of Zones
1
Mounting Direction/Shape
Horizontal
Backlit Screen
Yes
Application/Stages
Heat and Cool; 2H/1C Heat Pump
Electrical Connection Type
Hardwired
Shape
Rectangle
Number of Cooling Stages - Conventional System
0
Filter Change Reminder
Yes
Millivolt Compatible
Yes
Number of Heating Stages - Conventional System
0
Temperature Scale
Fahrenheit/Celsius
Number of Cooling Stages - Heat Pump System
1
Includes Positive Off
Yes

Description

Low Voltage Thermostat, Stages Heat 2, Stages Cool 1, Temp. Settings per Day 4, Programs per Week 7, Terminal Designations C, E, G, L, O/B, R, W2, Y, WiFi Capability No, System Switching Auto-Heat-Cool-Off, Fan Switching Auto-On, Display Size 4.81 sq in, Display Type Digital, Display Color Gray, Key Pad Lockout Yes, Programmable Fan No, Automatic Changeover No, Humidification Control No, Dehumidification Control No, Remote Sensing Capability No, Temporary Program Override Yes
