  11. 80 Series Thermostats, 7 Programs, 4 H, 2 C, Wall Mount, Hardwired/Battery, 24VAC

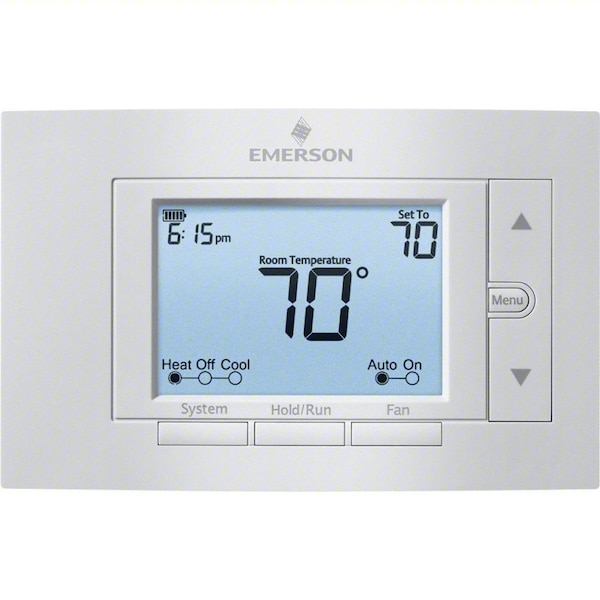

White-Rodgers 80 Series Thermostats, 7 Programs, 4 H, 2 C, Wall Mount, Hardwired/Battery, 24VAC 1F85U-42PR - main

80 Series Thermostats, 7 Programs, 4 H, 2 C, Wall Mount, Hardwired/Battery, 24VAC

  • Mfr # 1F85U-42PR

  • Zoro # G3713510

product price: $88.49
/ea
Free Shipping & Returns

Key Features

Voltage
24VAC
Stages Heat
4
Mounting Type
Horizontal
Mounting Location
Wall
Color
Gray
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1F85U-42PR
Zoro #
G3713510
UPC #
786710551871
Country of Origin
Mexico

Dimensions

Height
3 3/4"
Width
6"
Depth
1 1/8 in
Display Size
4.81 sq in
Overall Depth
1 1/8 in
Digit Size
Easy Read
Overall Width
6 in
Overall Height
3 3/4 in

Details

Item
80 Series Thermostats
Voltage
24VAC
Stages Heat
4
Mounting Type
Horizontal
Mounting Location
Wall
Color
Gray
Control Range
45 Degrees to 99 Degrees F
System Switching
Auto-Heat-Cool-Off
Stages Cool
2
Dual Transformer Compatible
Yes
Power Method
Hardwired/Battery
750mV Compatible
Yes
Programs per Week
7
Agency Compliance
Energy Aware
WiFi Capability
No
Dehumidification Control
No
For Use With
Heating and Cooling
Programmable Fan
No
Display Color
Gray
Display Type
LCD, Backlit
Filter Indicator
Yes
Green Certification or Other Recognition
Energy Aware
Fan Switching
Auto-on
Battery Backup
Yes
Humidification Control
No
Standards
NEMA
Temporary Temperature Hold
Yes
Low Battery Indicator
Yes
Temperature Limiting
Yes
Key Pad Lockout
Yes
Temporary Program Override
Yes
Batteries Included
Yes
Features
High Contrast Display
Terminal Designations
RC, RH, C, W/E, W2, Y, Y2, O/B/6, G, L
Automatic Changeover
Yes
Temp. Settings per Day
4
Includes
Mounting Hardware
Control Type
Push Button
Stages
2H/2C Conventional, 4H/2C Heat Pump
System/Fan Settings
Auto-Cool-Heat-Off/Auto-On
Temperature Control Range
45 Degrees to 99 Degrees F
Temperature settings per day
0, 2, 4
Maximum Operating Temperature
105 Degrees F
Electrical Connection Type
Hardwired
Battery Type
AA Battery
Minimum Control Temperature
45 Degrees F
Maximum Operating Humidity
90 %
Temperature Sensitivity
+/-1 Degrees F
Maximum Control Temperature
99 Degrees F
Mounting Direction/Shape
Horizontal
Temperature Readout
Yes
Temperature Scale
Fahrenheit/Celsius
Operating Humidity Range
0% to 90% RH
Contact Rating
20 to 30V AC
Smart Connectivity
No Connectivity
Includes Positive Off
Yes
Minimum Operating Temperature
32 Degrees F
Operating Temperature Range
32 Degrees to 105 Degrees F
Frequency
50 Hz, 60 Hz
Shape
Rectangle
Filter Change Reminder
Yes
Fan Settings
Auto-On
Differential Type
Adjustable
Application
Heat and Cool
Number of Heating Stages - Conventional System
2
Sensor Location
Remote
Backlit Type
Touch Activated or Continuous with Common Wire
Thermostat Type
Low Voltage
Number of Cooling Stages - Heat Pump System
2
Mounting Direction
Horizontal
Differential Cool
0.9 Degrees F, 1.2 Degrees F, 1.7 Degrees F
Minimum Operating Humidity
0 %
Backlit Screen Color
Gray
Requires C-Wire
Yes
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Hydronic Systems, Millivolt
Changeover Type
Automatic
Number of Cooling Stages - Conventional System
2
Number of Heating Stages - Heat Pump System
4
Millivolt Compatible
Yes
Number of Zones
1
Backlit Screen
Yes
Application/Stages
Heat and Cool; 2H/2C Conventional, 4H/2C Heat Pump
Programming Capability
5-1-1, 5-2, 7 Day
Temperature Differential
0.6 Degrees F, 1.2 Degrees F
Includes Batteries
Yes
System Settings
Auto-Cool-Heat-Off
Housing Color
Gray
Differential Heat
0.5 Degrees F, 0.75 Degrees F, 1.9 Degrees F

Description

Low Voltage Thermostat, Stages Heat 4, Stages Cool 2, Temp. Settings per Day 4, Programs per Week 7, Terminal Designations C, G, L, O/B/6, RC, RH, W/E, W2, Y, Y2, WiFi Capability No, System Switching Auto-Heat-Cool-Off, Fan Switching Auto-On, Display Size 4.81 sq in, Display Type Digital, Display Color Gray, Key Pad Lockout Yes, Programmable Fan No, Automatic Changeover Yes, Humidification Control No, Dehumidification Control Yes, Remote Sensing Capability No, Temporary Program Override Yes
