  11. Blue Series 12 Touchscreen Thermostats, 7, 5-1-1 Programs, 4 H, 2 C, 24VAC

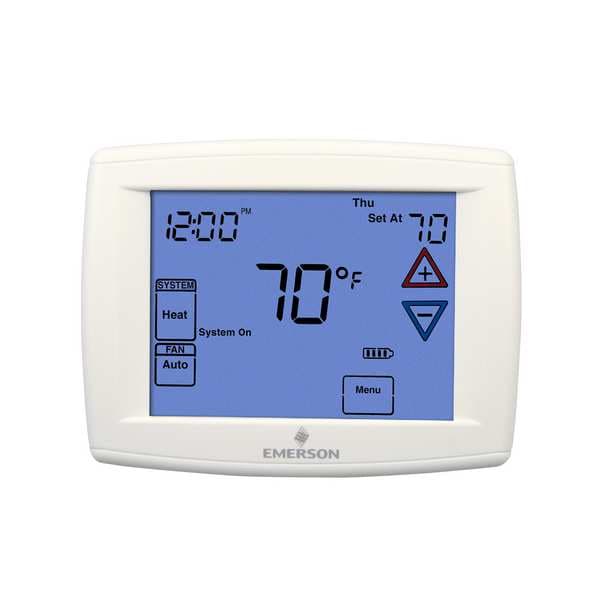

White-Rodgers Blue Series 12 Touchscreen Thermostats, 7, 5-1-1 Programs, 4 H, 2 C, 24VAC 1F95-1280 - main

Blue Series 12 Touchscreen Thermostats, 7, 5-1-1 Programs, 4 H, 2 C, 24VAC

  • Mfr # 1F95-1280

  • Zoro # G2794242

product price: $195.99
/ea
Free Shipping & Returns

Key Features

Voltage
24VAC
Stages Heat
4
Mounting Type
Horizontal
Color
White
Control Range
45 Degrees to 99 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1F95-1280
Zoro #
G2794242
UPC #
786710534560
Country of Origin
Viet Nam

Dimensions

Height
5"
Width
6"
Depth
1 1/4 in
Display Size
12 sq in
Overall Width
5 13/16 in
Overall Height
4 9/16 in
Overall Depth
1 13/16 in
Digit Size
Easy Read

Details

Item
Blue Series 12 Touchscreen Thermostats
Voltage
24VAC
Stages Heat
4
Mounting Type
Horizontal
Color
White
Control Range
45 Degrees to 99 Degrees F
System Switching
Auto-Heat-Cool-Off-Emergency
Stages Cool
2
Dual Transformer Compatible
Yes
Power Method
Hardwired/Battery/Power Stealing
750mV Compatible
Yes
Programs per Week
7, 5-1-1
Display Color
Blue
Humidification Control
No
Batteries Included
Yes
For Use With
Heat Only, Cool Only, Heating and Cooling, Single Stage Gas, Oil, Electric, Multi-Stage Gas, Oil, Electric, Heat Pump, Millivolt, 3-wire Zone Valve
Footnotes
1, 2, 3, 4, 6, 7, 8
Temperature Limiting
Yes
Programmable Fan
Yes
Features
Audible Feedback, Selectable High/Low Temp Limits, Key Pad Programming
Temp. Settings per Day
0, 2
Automatic Changeover
Yes
Includes
2 AA Batteries
Remote Sensing Capability
Yes
Dehumidification Control
No
Temporary Temperature Hold
Yes
Key Pad Lockout
Yes
Fan Switching
Auto-On-Program-Circulate
WiFi Capability
No
Display Type
Backlit
Battery Backup
Yes
Filter Indicator
Yes
Terminal Designations
RH, RC, C, Y, Y2, W/E, W2, G, O/B, L, 6, A1, +, S, -
Low Battery Indicator
Yes
Temporary Program Override
Yes
Mounting
Horizontal
Standards
California Title 24
Type
Touch Screen Programmable Multi Stage, H/C or HP
Stages
2H/2C Conventional, 4H/2C Heat Pump
Control Type
Touch Screen
Differential Type
Adjustable
Number of Zones
2
Temperature Control Range
45 Degrees to 99 Degrees F
Housing Color
White
Operating Humidity Range
0% to 90% RH
Shape
Rectangle
Millivolt Compatible
Yes
Minimum Operating Humidity
0 %
Differential Cool
0.9 Degrees F, 1.7 Degrees F
Minimum Operating Temperature
32 Degrees F
Maximum Control Temperature
99 Degrees F
System/Fan Settings
Auto-Cool-Emergency Heat-Heat-Off/Auto-On
Maximum Operating Humidity
90 %
Temperature Readout
Yes
Minimum Control Temperature
45 Degrees F
Fan Settings
Auto-On
Includes Positive Off
Yes
Includes Batteries
Yes
Backlit Type
Touch Activated or Continuous with Common Wire
Number of Heating Stages - Heat Pump System
4
Contact Rating
20 to 30V AC
Thermostat Type
Low Voltage
Backlit Screen
Yes
Temperature Differential
0.6 Degrees F, 1.2 Degrees F
Filter Change Reminder
Yes
Operating Temperature Range
32 Degrees to 105 Degrees F
Number of Cooling Stages - Heat Pump System
2
Number of Heating Stages - Conventional System
2
Temperature settings per day
0, 2
System Settings
Auto-Cool-Emergency Heat-Off
Temperature Sensitivity
+/-1 Degrees F
Programming Capability
5-1-1, 7 Day
Application/Stages
Heat and Cool; 2H/2C Conventional, 4H/2C Heat Pump
Temperature Scale
Fahrenheit/Celsius
Number of Cooling Stages - Conventional System
2
Changeover Type
Automatic
Smart Connectivity
No Connectivity
Maximum Operating Temperature
105 Degrees F
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Millivolt
Differential Heat
0.5 Degrees F, 1.9 Degrees F
Battery Type
(2) AA Batteries
Backlit Screen Color
Blue
Mounting Direction/Shape
Horizontal
Sensor Location
Remote
Application
Heat and Cool
Mounting Direction
Horizontal
Electrical Connection Type
Hardwired
Frequency
50 Hz, 60 Hz

Description

Low Voltage Thermostat, Stages Heat 4, Stages Cool 2, Temp. Settings per Day 0, 2, Programs per Week 7, 5-1-1, or Nonprogrammable, Terminal Designations -, +, 6, A1, C, G, L, O/B, RC, RH, S, W/E, W2, Y, Y2, WiFi Capability No, System Switching Auto-Heat-Cool-Off-Emergency, Fan Switching Auto-On-Program-Circulate, Display Size 12 sq in, Display Type Digital, Display Color Blue, Key Pad Lockout Yes, Programmable Fan Yes, Automatic Changeover Yes, Humidification Control Yes
