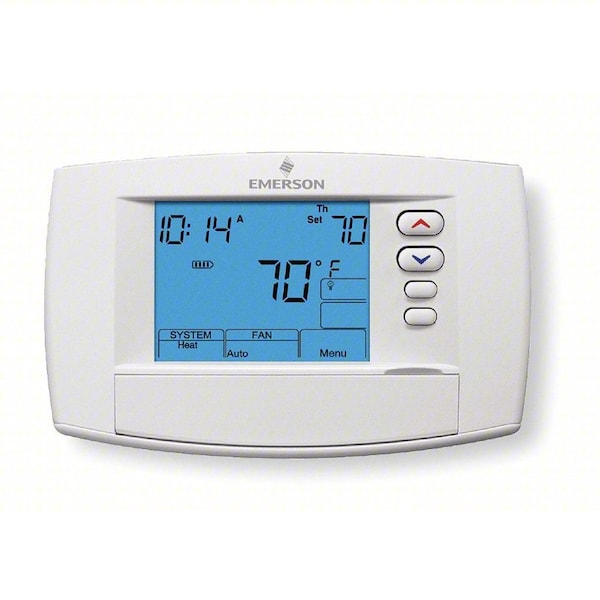

White-Rodgers Blue Series 6 Touchscreen Thermostats, 7, 5-1-1 Programs, 4 H, 2 C, 24VAC 1F95-0680 - main

Blue Series 6 Touchscreen Thermostats, 7, 5-1-1 Programs, 4 H, 2 C, 24VAC

  • Mfr # 1F95-0680

  • Zoro # G1383067

product price: $141.99
/ea
Free Shipping & Returns

Key Features

Voltage
24VAC
Stages Heat
4
Mounting Type
Horizontal
Color
White
Control Range
45 Degrees to 99 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1F95-0680
Zoro #
G1383067
UPC #
786710535703
Country of Origin
China

Dimensions

Height
4 5/8"
Width
5 7/8"
Display Size
6 sq in
Depth
1 1/4 in
Overall Width
6 1/2 in
Overall Depth
1 5/8 in
Overall Height
4 3/16 in
Digit Size
Easy Read

Details

Item
Blue Series 6 Touchscreen Thermostats
Voltage
24VAC
Stages Heat
4
Mounting Type
Horizontal
Color
White
Control Range
45 Degrees to 99 Degrees F
System Switching
Auto-Heat-Cool-Off-Emergency
Stages Cool
2
Dual Transformer Compatible
Yes
Power Method
Hardwired/Battery/Power Stealing
750mV Compatible
Yes
Programs per Week
7, 5-1-1
Green Environmental Attribute
Thermostat has Programmable Feature to Reduce Energy Consumption
Fan Switching
Auto-on
Batteries Included
Yes
Display Color
Blue
Automatic Changeover
Yes
Footnotes
1, 2, 3, 4, 6, 7, 8
Remote Sensing Capability
Yes
Filter Indicator
Yes
For Use With
Heat Only, Cool Only, Heating and Cooling, Single Stage Gas, Oil, Electric, Multi-Stage Gas, Oil, Electric, Heat Pump, Millivolt, 3-wire Zone Valve
Battery Backup
Yes
Terminal Designations
RH, RC, C, Y, Y2, W/E, W2, G, O/B, 6, L, A1, +, S, -
Includes
2 AA Batteries
Low Battery Indicator
Yes
WiFi Capability
No
Key Pad Lockout
Yes
Humidification Control
No
Temp. Settings per Day
0, 2, 4
Features
Blue Screen (2H/2C) or Heat Pump(4H/2C)
Programmable Fan
Yes
Temperature Limiting
Yes
Dehumidification Control
No
Standards
California Title 24
Mounting
Horizontal
Temporary Program Override
Yes
Display Type
Digital
Temporary Temperature Hold
Yes
Control Type
Touch Screen
Type
Digital Programmable Multi Stage H/C or HP
Sensor Type
Cooling, Heating
Stages
2H/2C Conventional, 4H/2C Heat Pump
Differential Heat
0.5 Degrees F, 0.75 Degrees F, 1.9 Degrees F
Housing Color
White
Thermostat Type
Low Voltage
Number of Cooling Stages - Conventional System
2
Fan Settings
Auto-On
Minimum Operating Temperature
32 Degrees F
Operating Temperature Range
32 Degrees to 105 Degrees F
Maximum Operating Temperature
105 Degrees F
Contact Rating
20 to 30V AC
Battery Type
(2) AA Batteries
Application
Heat and Cool
Number of Zones
2
Application/Stages
Heat and Cool; 2H/2C Conventional, 4H/2C Heat Pump
Electrical Connection Type
Hardwired
Sensor Location
Remote
Compatible System Type
Electric Forced Air Furnaces, Heat Pump with Aux, Millivolt, Gas Forced Air Furnaces
Operating Humidity Range
0% to 90% RH
Temperature Scale
Fahrenheit/Celsius
Filter Change Reminder
Yes
Backlit Screen
Yes
System Settings
Auto-Cool-Emergency Heat-Heat-Off
Temperature Differential
0.6 Degrees F, 1.2 Degrees F
Temperature Sensitivity
+/-1 Degrees F
Changeover Type
Automatic
Includes Positive Off
Yes
Millivolt Compatible
Yes
Minimum Operating Humidity
0 %
Mounting Direction/Shape
Horizontal
Programming Capability
5-1-1, 7 Day
Number of Heating Stages - Conventional System
2
Smart Connectivity
No Connectivity
Maximum Control Temperature
99 Degrees F
System/Fan Settings
Auto-Cool-Emergency Heat-Heat-Off/Auto-On
Frequency
50 Hz, 60 Hz
Number of Heating Stages - Heat Pump System
4
Number of Cooling Stages - Heat Pump System
2
Differential Cool
0.9 Degrees F, 1.2 Degrees F, 1.7 Degrees F
Backlit Type
Touch Activated or Continuous with Common Wire
Differential Type
Adjustable
Temperature Control Range
45 Degrees to 99 Degrees F
Temperature settings per day
0, 2, 4
Maximum Operating Humidity
90 %
Backlit Screen Color
Blue
Temperature Readout
Yes
Minimum Control Temperature
45 Degrees F
Shape
Rectangle
Mounting Direction
Horizontal
Includes Batteries
Yes

Description

Low Voltage Thermostat, Stages Heat 4, Stages Cool 2, Temp. Settings per Day 0, 2, 4, Programs per Week 7, 5-1-1, or Nonprogrammable, Terminal Designations -, +, 6, A1, C, G, L, O/B, RC, RH, S, W/E, W2, Y, Y2, WiFi Capability No, System Switching Auto-Heat-Cool-Off-Emergency, Fan Switching Auto-On, Display Size 6 sq in, Display Type Digital, Display Color Blue, Key Pad Lockout Yes, Programmable Fan Yes, Automatic Changeover Yes, Humidification Control No, Dehumidification Control No
