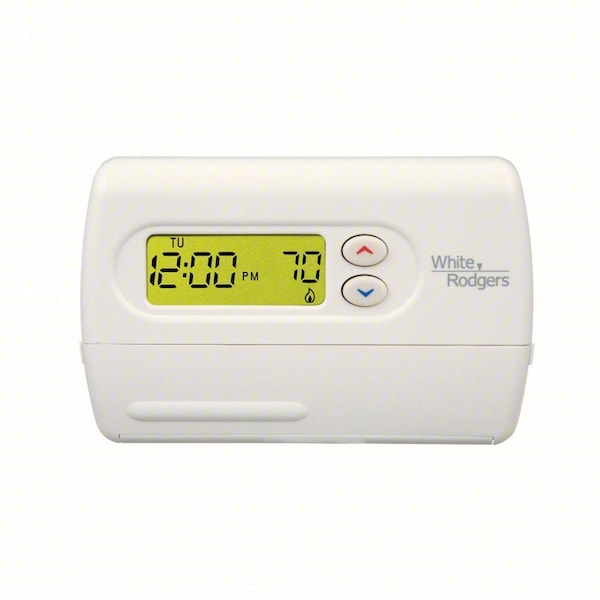

White-Rodgers Classic 80 Series Thermostats, 5-1-1 Programs, 1 H, 1 C, Hardwired/Battery, 24VAC 01F80 361 - main

Classic 80 Series Thermostats, 5-1-1 Programs, 1 H, 1 C, Hardwired/Battery, 24VAC

  • Mfr # 01F80 361

  • Zoro # G1855515

product price: $74.89
/ea

Key Features

Voltage
24VAC
Stages Heat
1
Mounting Type
Horizontal
Color
White
Control Range
45 Degrees to 99 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
01F80 361
Zoro #
G1855515
UPC #
786710520778
Country of Origin
China

Dimensions

Height
3 3/4"
Width
6"
Display Size
2.2 sq in
Depth
1 1/4 in
Overall Height
3 7/8 in
Digit Size
Standard
Overall Depth
1 3/16 in
Overall Width
6 in

Details

Item
Classic 80 Series Thermostats
Voltage
24VAC
Stages Heat
1
Mounting Type
Horizontal
Color
White
Control Range
45 Degrees to 99 Degrees F
System Switching
Heat-Cool-Off
Stages Cool
1
Dual Transformer Compatible
Yes
Power Method
Hardwired/Battery
750mV Compatible
Yes
Programs per Week
5-1-1
Display Type
Digital
Humidification Control
No
WiFi Capability
No
Key Pad Lockout
No
Includes
Mounting Hardware
Temporary Program Override
Yes
Batteries Included
Yes
Battery Backup
Yes
Remote Sensing Capability
No
Low Battery Indicator
Yes
Footnotes
3, 4
Temp. Settings per Day
4
Programmable Fan
No
Terminal Designations
C, G, O/B, RC, RH, W, Y
For Use With
Heat, Cool Systems
Fan Switching
Auto-on
Dehumidification Control
No
Temporary Temperature Hold
Yes
Control Type
Push Button
Type
Digital Programmable Single Stage H/C or HP
Stages
1H/1C Conventional, 1H/1C Heat Pump
System/Fan Settings
Cool-Heat-Off/Auto-On
Programming Capability
5-1-1
Number of Heating Stages - Conventional System
1
Changeover Type
Manual
Operating Humidity Range
0% to 90% RH
Application
Heat and Cool
Includes Batteries
Yes
Maximum Control Temperature
99 Degrees F
Temperature settings per day
4
Operating Temperature Range
32 Degrees to 105 Degrees F
Backlit Screen
Yes
Number of Cooling Stages - Heat Pump System
1
System Settings
Cool-Heat-Off
Temperature Readout
Yes
Smart Connectivity
No Connectivity
Shape
Rectangle
Includes Positive Off
Yes
Millivolt Compatible
Yes
Maximum Operating Humidity
90 %
Differential Heat
0.6 Degrees F, 1.5 Degrees F
Number of Zones
1
Minimum Operating Temperature
32 Degrees F
Minimum Operating Humidity
0 %
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux
Contact Rating
20 to 30V AC
Temperature Control Range
45 Degrees to 99 Degrees F
Temperature Sensitivity
+/-1 Degrees F
Fan Settings
Auto-On
Application/Stages
Heat and Cool; 1H/1C Conventional, 1H/1C Heat Pump
Mounting Direction/Shape
Horizontal
Temperature Differential
0.6 Degrees F, 1.2 Degrees F
Battery Type
(2) AA Batteries
Number of Heating Stages - Heat Pump System
1
Filter Change Reminder
No
Housing Color
White
Frequency
50 Hz, 60 Hz
Temperature Scale
Fahrenheit/Celsius
Number of Cooling Stages - Conventional System
1
Minimum Control Temperature
45 Degrees F
Thermostat Type
Low Voltage
Differential Cool
1.2 Degrees F
Differential Type
Adjustable
Electrical Connection Type
Hardwired
Mounting Direction
Horizontal
Maximum Operating Temperature
105 Degrees F

Description

Low Voltage Thermostat, Stages Heat 1, Stages Cool 1, Temp. Settings per Day 4, Programs per Week 5-1-1, Terminal Designations C, G, O/B, RC, RH, W, Y, WiFi Capability No, System Switching Heat-Cool-Off, Fan Switching Auto-On, Display Size 2.2 sq in, Display Type Digital, Key Pad Lockout No, Programmable Fan No, Humidification Control No, Dehumidification Control No, Remote Sensing Capability No, Temporary Program Override Yes, Temporary Temperature Hold Yes, Battery Backup Yes
