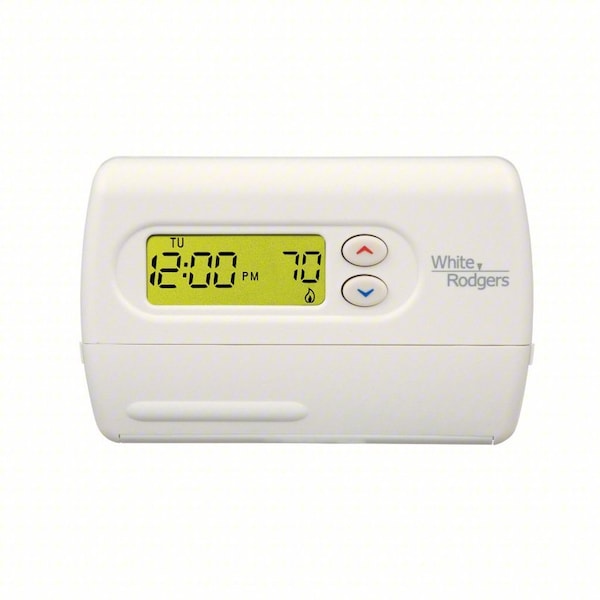

White-Rodgers Classic 80 Series Thermostats, 5-1-1 Programs, 2 H, 1 C, Electrical Box Mount, Hardwired, 24VAC 01F82 261S1 - main

Classic 80 Series Thermostats, 5-1-1 Programs, 2 H, 1 C, Electrical Box Mount, Hardwired, 24VAC

  • Mfr # 01F82 261S1

  • Zoro # G4708706

product price: $79.15
/ea
Free Shipping & Returns

Key Features

Voltage
24VAC
Stages Heat
2
Mounting Type
Horizontal
Mounting Location
Electrical Box
Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
01F82 261S1
Zoro #
G4708706
UPC #
786710100413
Country of Origin
China

Dimensions

Height
3 3/4"
Width
6"
Depth
1 1/4 in
Display Size
1.8 sq in
Overall Height
3 7/8 in
Overall Width
6 in
Overall Depth
1 3/16 in
Digit Size
Standard

Details

Item
Classic 80 Series Thermostats
Voltage
24VAC
Stages Heat
2
Mounting Type
Horizontal
Mounting Location
Electrical Box
Color
White
Control Range
45 Degrees to 99 Degrees F
System Switching
Heat-Cool-Off-Emergency
Stages Cool
1
Dual Transformer Compatible
No
Power Method
Hardwired
750mV Compatible
No
Programs per Week
5-1-1
Key Pad Lockout
No
Programmable Fan
No
Temp. Settings per Day
4
Features
Batteries not Required, Keypad Programming, Lighted Keypad
WiFi Capability
No
Fan Switching
Auto-on
Remote Sensing Capability
No
Humidification Control
No
Display Type
LCD, Backlit
For Use With
Heat pump
Low Battery Indicator
No
Terminal Designations
R, C, Y, W2, G, O/B, E, L
Temporary Program Override
Yes
Filter Indicator
Yes
Battery Backup
Yes
Includes
Mounting Hardware
Mounting
Horizontal or Vertical Electrical Box
Temporary Temperature Hold
Yes
Dehumidification Control
No
Control Type
Push Button
Stages
2H/2C Conventional
Type
Digital Programmable Multi Stage HP
System Settings
Cool-Emergency Heat-Heat-Off
Frequency
50 Hz, 60 Hz
Maximum Control Temperature
99 Degrees F
Temperature Readout
Yes
Number of Zones
1
Smart Connectivity
No Connectivity
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Millivolt
Number of Cooling Stages - Conventional System
0
Includes Positive Off
Yes
Minimum Operating Humidity
0 %
Thermostat Type
Low Voltage
Backlit Screen
Yes
Operating Temperature Range
32 Degrees to 105 Degrees F
Differential Cool
1.2 Degrees F
Mounting Direction
Horizontal
Minimum Operating Temperature
32 Degrees F
Number of Heating Stages - Heat Pump System
2
Minimum Control Temperature
45 Degrees F
Fan Settings
Auto-On
Contact Rating
20 to 30V AC
Maximum Operating Temperature
105 Degrees F
Temperature Differential
0.6 Degrees F, 1.2 Degrees F
Shape
Rectangle
Mounting Direction/Shape
Horizontal
Housing Color
White
Temperature settings per day
4
Millivolt Compatible
No
Maximum Operating Humidity
90 %
Number of Heating Stages - Conventional System
0
Differential Type
Adjustable
Temperature Control Range
45 Degrees to 99 Degrees F
Operating Humidity Range
0% to 90% RH
Differential Heat
0.6 Degrees F, 1.5 Degrees F
Includes Batteries
No
Application/Stages
Heat and Cool; 2H/1C Heat Pump
System/Fan Settings
Cool-Emergency Heat-Heat-Off/Auto-On
Electrical Connection Type
Hardwired
Temperature Sensitivity
+/-1 Degrees F
Application
Heat and Cool
Changeover Type
Manual
Temperature Scale
Fahrenheit/Celsius
Filter Change Reminder
No
Number of Cooling Stages - Heat Pump System
1
Programming Capability
5-1-1

Description

Low Voltage Thermostat, Stages Heat 2, Stages Cool 1, Temp. Settings per Day 4, Programs per Week 5-1-1, Terminal Designations C, E, G, L, O/B, R, W2, Y, WiFi Capability No, System Switching Heat-Cool-Off-Emergency, Fan Switching Auto-On, Display Size 1.8 sq in, Display Type Digital, Key Pad Lockout No, Programmable Fan No, Humidification Control No, Dehumidification Control No, Remote Sensing Capability No, Temporary Program Override Yes, Temporary Temperature Hold Yes, Filter Indicator Yes
