White-Rodgers

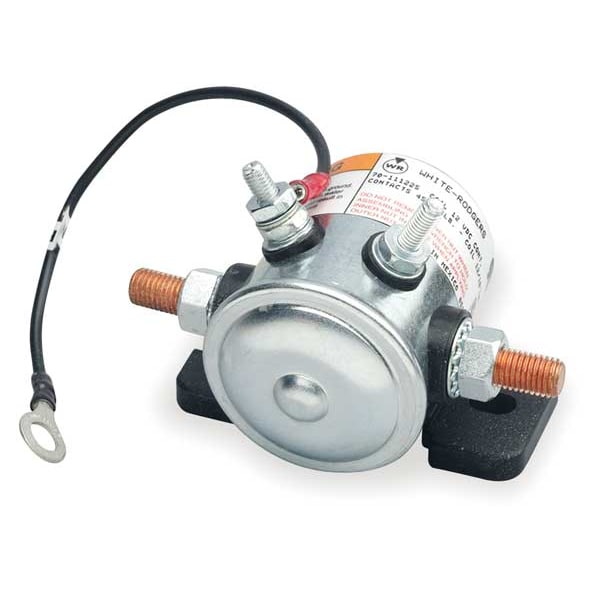

DC Power Solenoid, 12V, Amps 80

original price: $26.99
5% off
new price: $25.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Coil Voltage DC 12 V DC
  • Amps 80
  • Contact Form SPST-NO
  • Duty Cycle Continuous
  • Coil Termination #10-32 UNF-2A Thread
See all product information

Product Information

Dimensions

Width 3.48 in
Height 2.4 in
Length 2.47 in

Details

Item DC Power Solenoid
Coil Voltage DC 12 V DC
Amps 80
Contact Form SPST-NO
Duty Cycle Continuous
Coil Termination #10-32 UNF-2A Thread
Contact Material Copper
Contact Termination 5/16 in-24 UNF-2A thread
Coil Type Grounded
Standards UL 538
Enclosure Dust Resistant
Mounting Base Standard Bracket
Series 70
Contact Rating 12A
Coil Resistance 16 ohm
Temperature Range -40 to 122°F
Electrical Operating Durability 100,000
Weight 14 oz
Minimum Operating Temperature -40 Degrees F
Coil Voltage 12 V DC
Resistance Properties Dust Resistant
Mechanical Operating Durability 250,000
Power Consumption 9 W
Maximum Operating Temperature 122 Degrees F
Dielectric Strength 500 V
Current Rating 12 A

Description

DC Power Solenoid, Current Rating 12 A, Contact Form SPST-NO, Coil Voltage 12 V DC, Duty Cycle Continuous, Contact Termination 5/16 in-24 UNF-2A thread, Series 70, Coil Resistance 16 ohm, Coil Termination #10-32 UNF-2A Thread, Coil Type Grounded, Contact Material Copper, Dielectric Strength 500 V, Electrical Operating Durability 100,000, Height 2.4 in, Includes -, Length 2.47 in, Maximum Operating Temperature 122 Degrees F, Mechanical Operating Durability 250,000
