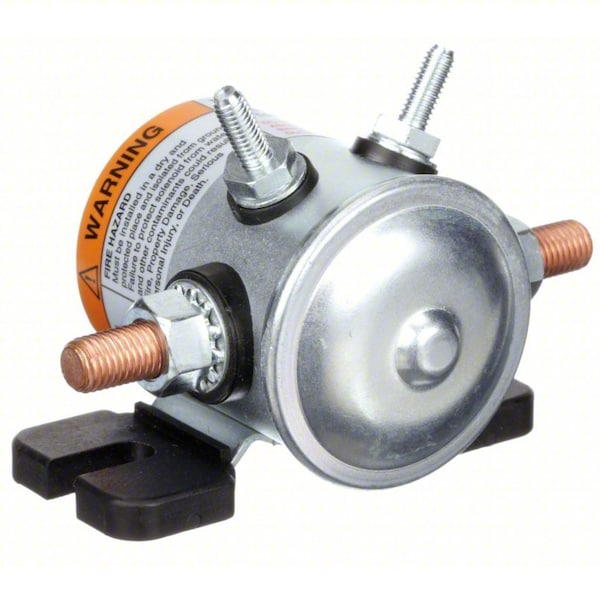

DC Power Solenoid, Dust Resistant, 50A, 36VDC, SPNO, Continuous Duty, No. 10-32, Isolated Coil Type
Mfr # 70 120224S1
Zoro # G2774143
product price: $29.59
/eaKey Features
Coil Voltage DC
36 V DC
Amps
50
Contact Form
SPST-NO
Duty Cycle
Continuous
Coil Termination
#10-32 UNF-2A Thread
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
70 120224S1
Zoro #
G2774143
UPC #
786710103285
Country of Origin
Mexico
Dimensions
Width
3.48 in
Length
2.47 in
Height
2.4 in
Overall Width
3.48 in
Overall Length
2.47 in
Overall Height
2.4 in
Description
DC Power Solenoid, Current Rating 50 A, Contact Form SPST-NO, Coil Voltage 36 V DC, Duty Cycle Continuous, Contact Termination 5/16 in-24 UNF-2A Thread, Series 70, Coil Resistance 114 ohm, Coil Termination #10-32 UNF-2A Thread, Coil Type Isolated, Contact Material Copper, Dielectric Strength 500 V, Electrical Operating Durability 100,000, Height 2.4 in, Includes Not Applicable, Length 2.47 in, Maximum Operating Temperature 122 Degrees F, Mechanical Operating Durability 250,000
