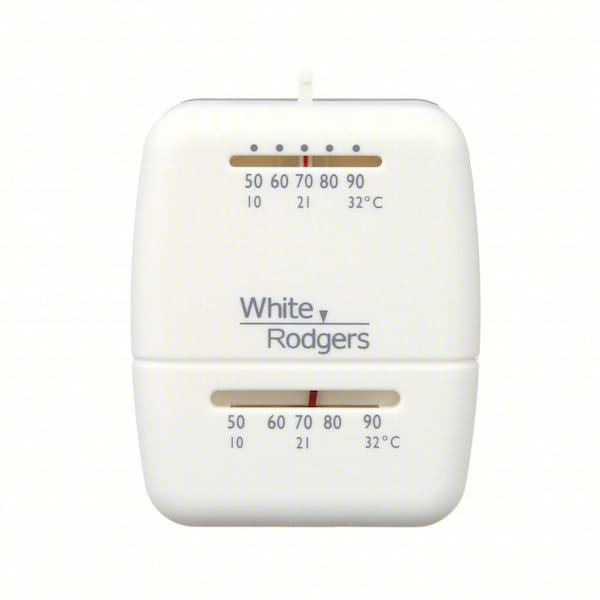

White-Rodgers Economy Mechanical Thermostats, 1 H, 0 C, Transformer, 24VAC 01C20 102S1 - main

Economy Mechanical Thermostats, 1 H, 0 C, Transformer, 24VAC

  • Mfr # 01C20 102S1

  • Zoro # G5269877

product price:  $17.29
/ea
Sold in multiples of 10 for $172.90

Key Features

Voltage
24VAC
Stages Heat
1
Mounting Type
Vertical
Color
White
Control Range
50 Degrees to 90 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
01C20 102S1
Zoro #
G5269877
UPC #
786710100482
Country of Origin
China

Dimensions

Height
3 3/4"
Width
2 7/8"
Depth
1 1/2 in
Overall Depth
1 1/2 in
Overall Width
2 7/8 in
Digit Size
Standard
Overall Height
3 3/4 in

Details

Item
Economy Mechanical Thermostats
Voltage
24VAC
Stages Heat
1
Mounting Type
Vertical
Color
White
Control Range
50 Degrees to 90 Degrees F
System Switching
No
Stages Cool
0
Dual Transformer Compatible
No
Power Method
Transformer
750mV Compatible
Yes
For Use With
Heating Systems
Fan Switching
No
Features
Heat Only
Terminal Designations
R, W
Automatic Changeover
No
Mounting
Vertical
Dehumidification Control
No
Display Type
Analog
Humidification Control
No
Stages
1H Conventional
Control Type
Slide Switch
Thermostat Type
Low Voltage
Frequency
50 Hz, 60 Hz
Housing Color
White
Temperature Control Range
50 Degrees to 90 Degrees F
Maximum Operating Humidity
90 %
Number of Cooling Stages - Conventional System
0
Temperature Readout
Yes
Differential Cool
4 Degrees F
Includes Positive Off
No
Contact Type
Snap Action
Number of Heating Stages - Heat Pump System
0
Mounting Direction/Shape
Vertical
Maximum Control Temperature
90 Degrees F
Mounting Direction
Vertical
Shape
Rectangle
Temperature Scale
Fahrenheit
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Millivolt
Mercury Free
Yes
Number of Heating Stages - Conventional System
1
Fan Settings
No Fan Setting
Differential Type
Adjustable
Millivolt Compatible
Yes
Temperature Differential
2 Degrees F Heating, 4 Degrees F Cooling
System/Fan Settings
On/No Fan Setting
Differential Heat
2 Degrees F
Minimum Operating Humidity
0 %
System Settings
On
Number of Cooling Stages - Heat Pump System
0
Application
Heat Only
Minimum Control Temperature
50 Degrees F
Electrical Connection Type
Hardwired
Operating Humidity Range
0% to 90%

Description

Low Voltage Thermostat, Terminal Designations RH, W, System Switching No, Fan Switching No, Automatic Changeover No, Dual Transformer Compatible No, Power Method Transformer, Voltage 30V AC, 750mV Compatible Yes, Mounting Vertical, Height 3 3/4 in, Width 2 7/8 in, Depth 1 1/2 in, Color White, Control Range 50 Degrees to 90 Degrees F, Features Heat Only, For Use With Heating Systems
