Shop WHITE-RODGERS

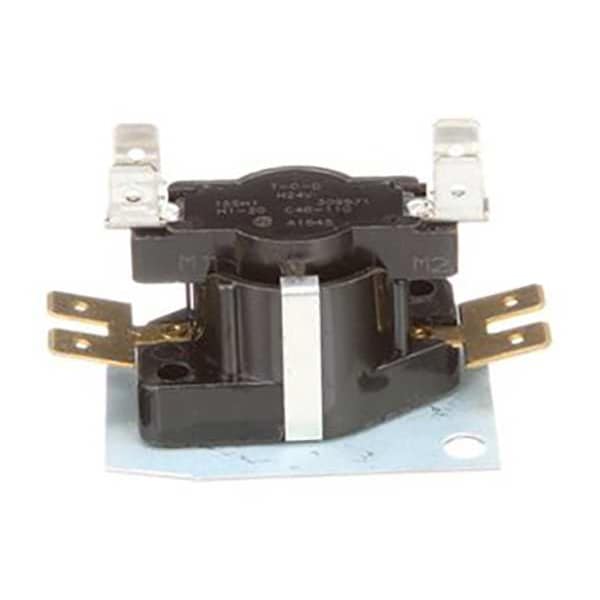

Electric Sequencer, 1-15/16" H, 3-13/64" W

  • Mfr # 24A34 006S1
  • Zoro # G5163389
product price:
$
24.19
/ea

Key Features

Resistive Amps @ 120V
25 A
Width (In.)
3 13/64 in
Main Switch Off Time (Sec.)
1 to 110
On Time (Seconds)
1 to 110
Off Time (Seconds)
1 to 110
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
24A34 006S1
Zoro #
G5163389
UPC #
786710004667
Country of Origin
United States

Dimensions

Width (In.)
3 13/64 in
Height (In.)
1 15/16 in
Depth (In.)
8 in
Overall Depth
8 in
Overall Length
1 15/16 in
Overall Width
3 3/16 in
Wire Rope Length
1 15/16 in
Length
1 15/16 in

Details

Resistive Amps @ 120V
25 A
Main Switch Off Time (Sec.)
1 to 110
On Time (Seconds)
1 to 110
Off Time (Seconds)
1 to 110
Locked Rotor Amps @ 120V
72 A
Type
Electric Heat Sequencer for Replacement of Fan/Heat Sequencing Functions
Number of Timings
2
Number of Switches
4
Resistive Amps @ 240V
25 A
Aux. Switch On Time (Sec.)
1 to 110
Control Volts
24 V
Aux. Switch Off Time (Sec.)
1 to 110
Pilot Duty 120/480V (VA)
125 VA
Full Load Amps @ 240VAC
7 A
Locked Rotor Amps @ 240V
42 A
Full Load Amps @ 120VAC
14 A
Resistive Amps @ 480V
12.5 A
Item
Electric Sequencer
Main Switch On Time (Sec.)
1 to 110
Full Load Current @ 240V AC
7 A
Pilot Duty @ 120V AC
120 VA
Main Switch Off Maximum
110 sec
Locked Rotor Current @ 240V AC
42 A
Main Switch On Maximum
110 sec
Resistive Load Current @ 240V AC
25 A
Main Switch Off Minimum
1 sec
Resistive Load Current @ 120V AC
25 A
Operating Temperature - Minimum
-50 Degrees F
Standards
UL Listed
Auxiliary Switch Off Maximum
110 sec
Full Load Current @ 120V AC
14 A
Voltage
24V AC
Auxiliary Switch Off Minimum
1 sec
Main Switch On Minimum
1 sec
Pilot Duty @ 240V AC
240 VA
Operating Temperature - Maximum
165 Degrees F
Application
Fan and Heat Sequencing Functions
Locked Rotor Current @ 120V AC
72 A
Auxiliary Switch On Minimum
11 sec

Description

Electric Sequencer, Application Fan and Heat Sequencing Functions, Auxiliary Switch Off Maximum 110 sec, Auxiliary Switch Off Minimum 1 sec, Auxiliary Switch On Minimum 11 sec, Full Load Current @ 120V AC 14 A, Full Load Current @ 240V AC 7 A, Locked Rotor Current @ 120V AC 72 A, Locked Rotor Current @ 240V AC 42 A, Main Switch Off Maximum 110 sec, Main Switch Off Minimum 1 sec, Main Switch On Maximum 110 sec, Main Switch On Minimum 1 sec, Number of Switches 4, Number of Timings 2
