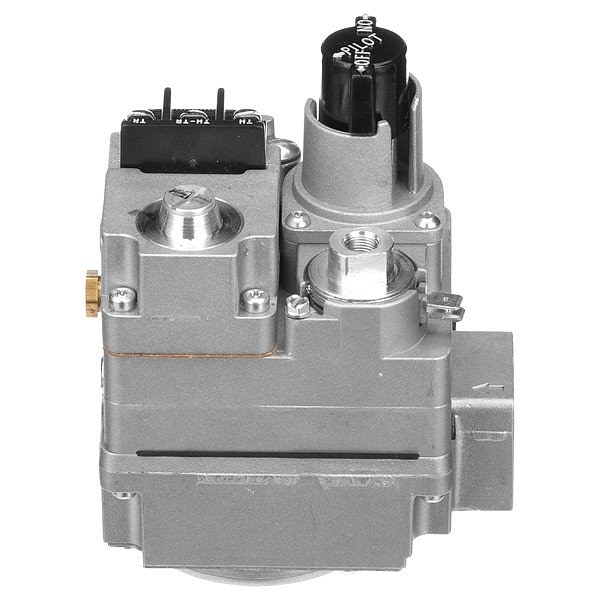

White-Rodgers Gas Valve, Natural Gas, Standing Pilot, 24 V, Slow Opening, 0.6A, -40 Degrees to 175 Degrees F 36C94 906 - main

Gas Valve, Natural Gas, Standing Pilot, 24 V, Slow Opening, 0.6A, -40 Degrees to 175 Degrees F

  • Mfr # 36C94 906

  • Zoro # G3106629

product price:  $344.34
/ea
Free Shipping & Returns

Key Features

BtuH Capacity
50,000 to 400,000
Coil Volts
24 V
Gas Type
Natural Gas
Ignition Type
Standing Pilot
Inlet Size
3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36C94 906
Zoro #
G3106629
UPC #
786710527401
Country of Origin
Mexico

Dimensions

Inlet Size
3/4 in
Outlet Size
3/4 in
Port Connection Size
3/4 in

Details

BtuH Capacity
50,000 to 400,000
Coil Volts
24 V
Gas Type
Natural Gas
Ignition Type
Standing Pilot
Valve Type
Slow Opening
Amps AC
0.6A
Ambient Temp. Range
-40 Degrees to 175 Degrees F
Item
Gas Valve
LP Conversion Kit
No
Flow Direction
Straight-Thru
Side Taps
No
Inlet Pressure Tap
Yes
Standards
CSA Approved
Max. Inlet Pressure
1/2 psi
Opening Characteristic
Slow Opening
Manufacturer Series
36C
Includes Pressure Regulator
Pressure Regulator Included
Operating Temperature - Maximum
175 Degrees F
Current
0.6 A
Heating Capacity - Maximum
280,000 BtuH
For Media
Natural Gas
Includes On/Off Switch
On/Off Switch Included
Operating Temperature - Minimum
-40 Degrees F
Port Connection Type
NPT
Port Connection Gender
Female
Reducer Bushings Included
None
Sensing Type
Mercury Switch
Includes Pressure Tap
Pressure Tap Inlet Included, Pressure Tap Outlet Included
Voltage
24V AC
Includes Side Taps
Side Taps Not Included
Pilot Type
Intermittent Pilot
Pilot Port Connection Type
Compression
Includes Thermostat
Mechanical Thermostat Not Included
Includes Conversion Kit
Conversion Kit Not Included
Installation Orientation
Vertical
Includes Pilot Generator Kit
Pilot Generator Kit Not Included
Valve Design
Single

Description

Gas Valve, Current 0.6 A, Flow Direction Straight-Thru, For Media Natural Gas, Heating Capacity - Maximum 280,000 BtuH, Includes Conversion Kit Conversion Kit Not Included, Includes On/Off Switch On/Off Switch Included, Includes Pilot Generator Kit Pilot Generator Kit Not Included, Includes Pressure Regulator Pressure Regulator Included, Includes Pressure Tap Pressure Tap Inlet Included, Pressure Tap Outlet Included, Includes Side Taps Side Taps Not Included
