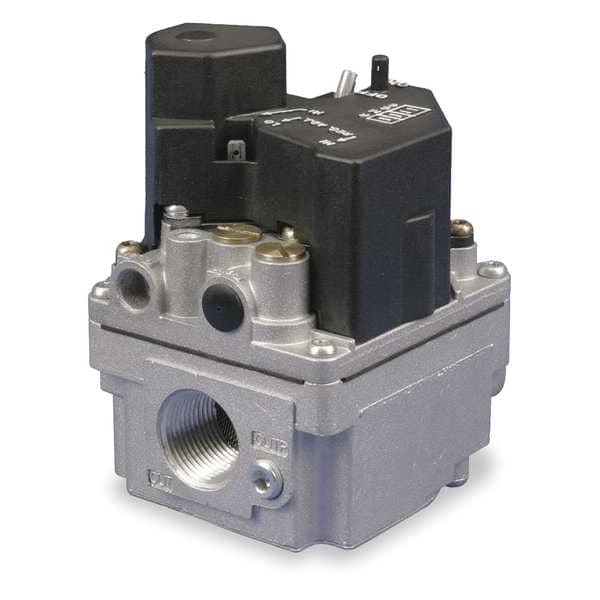

White-Rodgers Gas Valve, NG/LP, 2-Stage Intermittent or Hot Surface Ignition, 24 V, 1.5 to 3.5 in wc, 0.54 A 36H64-463 - main

Gas Valve, NG/LP, 2-Stage Intermittent or Hot Surface Ignition, 24 V, 1.5 to 3.5 in wc, 0.54 A

  • Mfr # 36H64-463

  • Zoro # G1880627

product price:  $211.99
/ea
Free Shipping & Returns

Key Features

BtuH Capacity
300,000 BtuH
Coil Volts
24 V
Gas Type
NG/LP
Ignition Type
2-Stage Intermittent or Hot Surface Ignition
Inlet Size
3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
36H64-463
Zoro #
G1880627
UPC #
786710547201
Country of Origin
Mexico

Dimensions

Inlet Size
3/4 in
Outlet Size
3/4 in
Pressure Tap Connection Size
1/8 in
Overall Length
3 1/4 in
Overall Height
5 in
Port Connection Size
3/4 in

Details

BtuH Capacity
300,000 BtuH
Coil Volts
24 V
Gas Type
NG/LP
Ignition Type
2-Stage Intermittent or Hot Surface Ignition
Valve Type
Fast Opening
Amps AC
0.54 A
Ambient Temp. Range
-40 to 175 Degrees F
Item
Gas Valve
LP Conversion Kit
Yes
Pressure Setting Range
1.5 to 3.5 in wc
Flow Direction
Straight-Thru
Includes
Natural to LP Gas Conversion Kit
Inlet Pressure Tap
Yes
Side Taps
No
Includes Conversion Kit
Conversion Kit Included
Port Connection Gender
Female
Installation Orientation
Vertical
Includes Pilot Generator Kit
Pilot Generator Kit Not Included
Operating Temperature - Minimum
-40 Degrees F
Sensing Type
Flame Sensor
Reducer Bushings Included
None
Voltage
24V AC
Valve Design
Dual
Manufacturer Series
36H
Includes Thermostat
Mechanical Thermostat Not Included
Includes On/Off Switch
On/Off Switch Included
For Media
Liquid Propane, Natural Gas
Pressure Tap Connection Type
NPT
Electrical Connections
Quick Connect Terminal
Port Connection Type
NPT
Current
0.54 A
Includes Pressure Regulator
Pressure Regulator Included
Includes Pressure Tap
Pressure Tap Inlet Included, Pressure Tap Outlet Included
Operating Temperature - Maximum
175 Degrees F
Heating Capacity - Maximum
300,000 BtuH
Includes Side Taps
Side Taps Not Included
Pilot Type
Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot
Opening Characteristic
Fast Opening

Description

Gas Valve, Current 0.54 A, Electrical Connections Quick Connect Terminal, Flow Direction Straight-Thru, For Media Liquid Propane, Natural Gas, Heating Capacity - Maximum 300,000 BtuH, Includes Conversion Kit Conversion Kit Included, Includes On/Off Switch On/Off Switch Included, Includes Pilot Generator Kit Pilot Generator Kit Not Included, Includes Pressure Regulator Pressure Regulator Included, Includes Pressure Tap Pressure Tap Inlet Included, Pressure Tap Outlet Included
