  5. Gas Valve, NG/LP, Electronic, 24 V, Fast Opening, 0.43A, -40 Degrees to 175 Degrees F

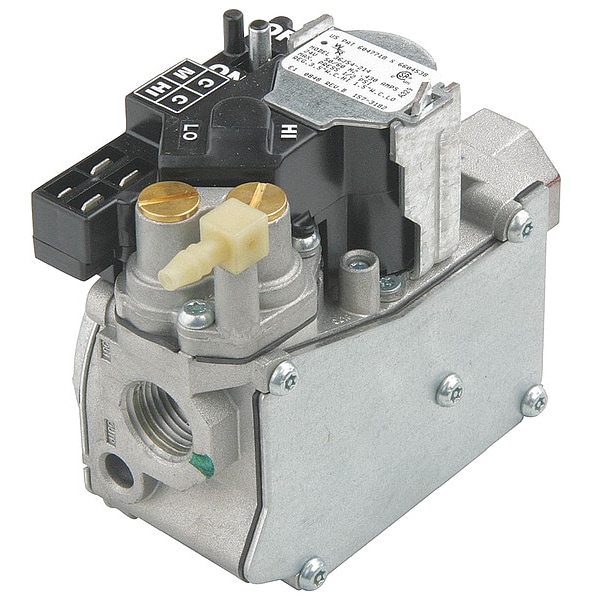

White-Rodgers Gas Valve, NG/LP, Electronic, 24 V, Fast Opening, 0.43A, -40 Degrees to 175 Degrees F 36J54-214 - main

Gas Valve, NG/LP, Electronic, 24 V, Fast Opening, 0.43A, -40 Degrees to 175 Degrees F

  • Mfr # 36J54-214

  • Zoro # G8564726

product price:  $130.99
/ea
Free Shipping & Returns

Key Features

BtuH Capacity
140,000 BtuH
Coil Volts
24 V
Gas Type
NG/LP
Ignition Type
Electronic
Inlet Size
1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
36J54-214
Zoro #
G8564726
UPC #
786710535741
Country of Origin
Mexico

Dimensions

Inlet Size
1/2 in
Outlet Size
1/2 in
Port Connection Size
1/2 in
Overall Length
4 11/16 in
Pressure Tap Connection Size
5/16 in
Overall Height
4 1/4 in

Details

BtuH Capacity
140,000 BtuH
Coil Volts
24 V
Gas Type
NG/LP
Ignition Type
Electronic
Reducer Bushing Kit
(2) 1/2 x 3/8
Valve Type
Fast Opening
For Use With
Non-Piloted Intermittent Ignition Systems
Amps AC
0.43A
Ambient Temp. Range
-40 Degrees to 175 Degrees F
Item
Gas Valve
LP Conversion Kit
Yes
Pressure Setting Range
Low: 1.0 to 4.0" WC, High: 2.0 to 5.0" WC/ Low: 4.0 to 10.0" WC, High: 6.0 to 12.0" WC
Flow Direction
Straight-Thru
Max. Inlet Pressure
1/2 psi
Standards
CSA
Inlet Pressure Tap
Yes
Side Taps
No
Includes Pilot Generator Kit
Pilot Generator Kit Not Included
Includes Pressure Tap
Pressure Tap Inlet Included, Pressure Tap Outlet Included
Operating Temperature - Maximum
175 Degrees F
Installation Orientation
Versatile
Port Connection Type
NPT
Sensing Type
Flame Sensor
Includes On/Off Switch
On/Off Switch Included
Opening Characteristic
Fast Opening
Pilot Type
Direct Spark Ignition, Hot Surface Ignition
Heating Capacity - Maximum
140,000 BtuH
Includes Thermostat
Mechanical Thermostat Not Included
Includes Pressure Regulator
Pressure Regulator Included
Manufacturer Series
36J
Operating Temperature - Minimum
-40 Degrees F
Electrical Connections
Quick Connect Terminal
Includes Conversion Kit
Conversion Kit Included
Includes Side Taps
Side Taps Not Included
For Media
Liquid Propane, Natural Gas
Voltage
24V AC
Reducer Bushings Included
(2) 1/2 x 3/8
Valve Design
Dual
Port Connection Gender
Female
Current
0.43 A

Description

Gas Valve, Current 0.43 A, Electrical Connections Quick Connect Terminal, Flow Direction Straight-Thru, For Media Liquid Propane, Natural Gas, Heating Capacity - Maximum 140,000 BtuH, Includes Conversion Kit Conversion Kit Included, Includes On/Off Switch On/Off Switch Included, Includes Pilot Generator Kit Pilot Generator Kit Not Included, Includes Pressure Regulator Pressure Regulator Included, Includes Pressure Tap Pressure Tap Inlet Included, Pressure Tap Outlet Included
