  5. Gas Valve, NG/LP, Standing Pilot, 24VAC, 2.5 to 5.0 in wc, 0.23 A

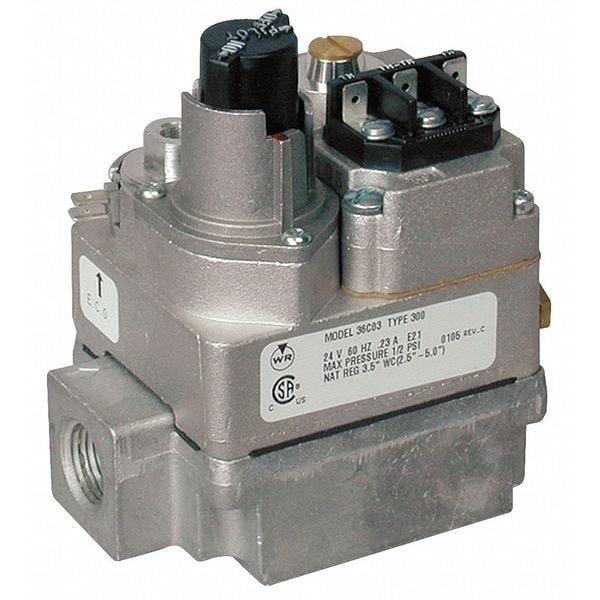

White-Rodgers Gas Valve, NG/LP, Standing Pilot, 24VAC, 2.5 to 5.0 in wc, 0.23 A 36C03-300 - main

Gas Valve, NG/LP, Standing Pilot, 24VAC, 2.5 to 5.0 in wc, 0.23 A

  • Mfr # 36C03-300

  • Zoro # G2866866

product price:  $117.38
/ea
Free Shipping & Returns

Key Features

BtuH Capacity
230,000 BtuH
Coil Volts
24 V
Gas Type
NG/LP
Ignition Type
Standing Pilot
Inlet Size
1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
36C03-300
Zoro #
G2866866
UPC #
786710547225
Country of Origin
Mexico

Dimensions

Inlet Size
1/2 in
Outlet Size
3/4 in
Port Connection Size
1/2 in
Pilot Port Connection Size
1/4 in
Overall Length
3 15/16 in
Pressure Tap Connection Size
1/8 in
Overall Depth
2 7/8 in

Details

BtuH Capacity
230,000 BtuH
Coil Volts
24 V
Gas Type
NG/LP
Ignition Type
Standing Pilot
Reducer Bushing Kit
3/4 x 1/2 in and 1/2 x 3/8 in
Valve Type
Fast Opening
Amps AC
0.23 A
Ambient Temp. Range
-40 to 175 Degrees F
Item
Gas Valve
LP Conversion Kit
Yes
Pressure Setting Range
2.5 to 5.0 in wc
Flow Direction
Straight-Thru
Includes
3/4 x 1/2 in and 1/2 x 3/8 in Reducer Bushings, ECO Terminals, Natural to LP Gas Conversion Kit, Thermocouple Actuated Line Interrupter
Standards
CSA Approved
Inlet Pressure Tap
No
Side Taps
No
Max. Inlet Pressure
1/2 psi
Reducer Bushings Included
1/2 x 3/8 in, 3/4 x 1/2 in
Operating Temperature - Maximum
175 Degrees F
Pilot Port Connection Type
Compression
Heating Capacity - Maximum
230,000 BtuH
Installation Orientation
Vertical
Opening Characteristic
Fast Opening
Includes Pressure Tap
Pressure Tap Outlet Included
Valve Design
Single
Port Connection Gender
Female
Includes Thermostat
Mechanical Thermostat Not Included
Sensing Type
Flame Sensor
Operating Temperature - Minimum
-40 Degrees F
Includes Side Taps
Side Taps Not Included
Pilot Type
Standing Pilot
Port Connection Type
NPT
For Media
Liquid Propane, Natural Gas
Voltage
24V AC
Includes Pilot Generator Kit
Pilot Generator Kit Not Included
Pressure Tap Connection Type
NPT
Current
0.23 A
Includes On/Off Switch
On/Pilot/Off Switch Included
Includes Conversion Kit
Conversion Kit Included
Includes Pressure Regulator
Pressure Regulator Included
Manufacturer Series
36C

Description

Gas Valve, Current 0.23 A, Flow Direction Straight-Thru, For Media Liquid Propane, Natural Gas, Heating Capacity - Maximum 230,000 BtuH, Includes Conversion Kit Conversion Kit Included, Includes On/Off Switch On/Pilot/Off Switch Included, Includes Pilot Generator Kit Pilot Generator Kit Not Included, Includes Pressure Regulator Pressure Regulator Included, Includes Pressure Tap Pressure Tap Outlet Included, Includes Side Taps Side Taps Not Included
