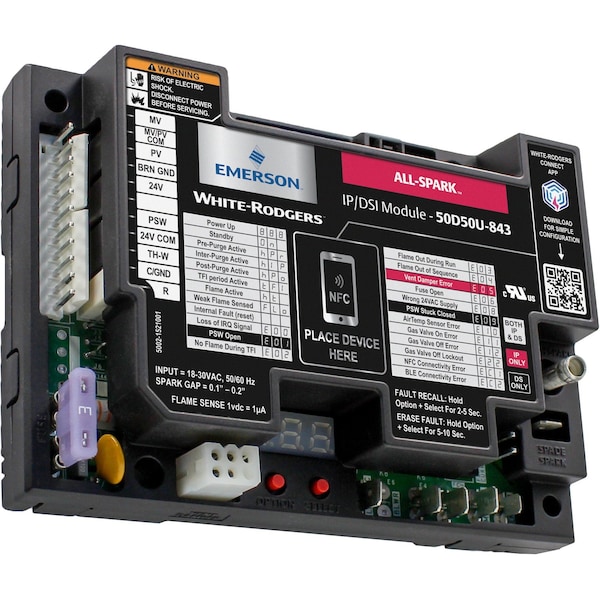

White-Rodgers Ignition Module, 24V AC, Pre-Purge 50D50U-843 - main

Ignition Module, 24V AC, Pre-Purge

  • Mfr # 50D50U-843

  • Zoro # G406600757

product price: $154.99
/ea
Free Shipping & Returns

Key Features

Electrical Ratings
24 V AC
Includes
Boilers, Cooking and Laundry Equipment, Gas Furnaces, Infrared and Tube Heaters, Unit Heaters, Water Heaters
Gas Type
NG/LP
Product Type
Ignition Module
Electrical Connections
3/16 in Quick Connect
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
50D50U-843
Zoro #
G406600757
UPC #
786710561658
Country of Origin
Mexico

Dimensions

Lead Length (In.)
5 1/2 in
Lead Length
5 1/2 in

Details

Electrical Ratings
24 V AC
Includes
Boilers, Cooking and Laundry Equipment, Gas Furnaces, Infrared and Tube Heaters, Unit Heaters, Water Heaters
Gas Type
NG/LP
Product Type
Ignition Module
Electrical Connections
3/16 in Quick Connect
Amps AC
800 mA
Control Volts
24 V AC
Voltage
120 V AC
Bracket
Universal
Igniter Warm-Up Time (Sec.)
90 sec
Type
Intermittent Pilot Ignition
Standards
UL Listed
Item
Ignition Module
Retries
1, 2, 3, Continuous
For Use With
Residential and Commercial Heating Equipment
Frequency
50/60 Hz
OEM Replacement Part Number
00-354447-00001, 00-857207-00001, 00-857207-00002, 025-27662-000, 025-27662-700, 025-29012-001, 025-29012-002, 025-29012-003, 025-29012-004, 025-42681-000, 031-01283-000, 03546, 05-162425-103, 05-162425-200, 05-162426-000, 05-162426-001, 05-162426-002, 05-162426-003, 05-162426-005, 05-162426-006, 05-162426-007, 05-162426-053, 05-162426-101, 05-162426-105, 05-162426-200, 05-162426-201, 05-162426-203, 05-162426-207, 05-162526-005, 05-169001-000, 05-169001-001, 05-169001-002, 05-169001-003, 05-169002-003, 05-169003-103, 05-169005-123, 05-169006-201, 05-169007-201, 05-169008-225, 05-169009-005, 05-169009-023, 05-169010-023, 05-169011-201, 05-169011-205, 05-169012-200, 05-169015-705, 05-169018-003, 05-203025-005, 05-203026-005, 05-272426-005, 05-272426-055, 05-272426-253, 05-279000-023, 05-279001-223, 05-279002-223, 05-279003-223, 05-279004-201, 05-279004-223, 05-279005-223, 05-296423-150, 05-296423-151, 05-296423-750, 05-296423-751, 05-296425-153, 05-296425-250, 05-296425-755, 05-296426-150, 05-296426-151, 05-296426-153
Maximum Input Current
800 mA
Lock Out Time
5 min
Application
Boilers, Ovens, LP/Natural Gas Furnaces, Infrared and Tube Heaters, Laundry, Unit Heaters, Water Heaters
Replacement Type
OEM
Maximum Operating Temperature
175 Degrees F
Flame Sensor Current Output
0.5 uA
Thermostat Anticipator Setting
Thermostat Anticipator
Igniter Warm Up Time
90 sec
Automatic Reset Time
1 hr
Number of Retries
1
Minimum Operating Temperature
-40 Degrees F
Pilot Valve Current Output
2 A
Input Voltage
120V AC
Electrical Connection Type
3/16 in Quick-Connect
Compatible with Brand
AAON, ADC, Bakers Pride, Baso, Beckett, BKI, Blodgett, Bradford White, Camstat, Capable, Carrier, Cleveland, Crown Stream, Dexter, Duke, Fenwal, Frymaster, Garland, Goodman, Groen, Henny Penny, Hobart, Honeywell, ICM, Johnson Controls, Laars, Lennox, Lincoln, Lochinvar, Midco, Middleby, Modine, Picard, Pitco, Resideo, Reznor, Rheem, Roberts Gordon, Robertshaw, Snyder, Space Ray, Sunstar, Superior Radiant, Trane, UTEC, Utica-Dunkirk, Vulcan Hart, Weil McLain, White-Rodgers, York
Low Voltage Protection
Low Voltage Protected
Board Type
Non-Integrated Board
Pre-Purge Time
45 sec
Control Voltage
24V AC
Main Valve Current Output
4 A
Ignition Cycle Time
90 seconds (IP), 0 seconds (pre-purge), 0 seconds (inter-purge) 4 seconds (DS), 30 seconds (pre-purge), 30 seconds (inter-purge)
For Fuel Type
LP, Natural Gas

Description

Ignition Module, Product Type Ignition Module, Maximum Operating Temperature 175 Degrees F, Minimum Operating Temperature -40 Degrees F, Lock Out Time 5 min, Pre-Purge Time 45 sec, Number of Retries 1, Main Valve Current Output 4 A, Flame Sensor Current Output 0.5 uA, Ignition Cycle Time 90 seconds (IP), 0 seconds (pre-purge), 0 seconds (inter-purge) , 4 seconds (DS), 30 seconds (pre-purge), 30 seconds (inter-purge), Automatic Reset Time 1 hr
