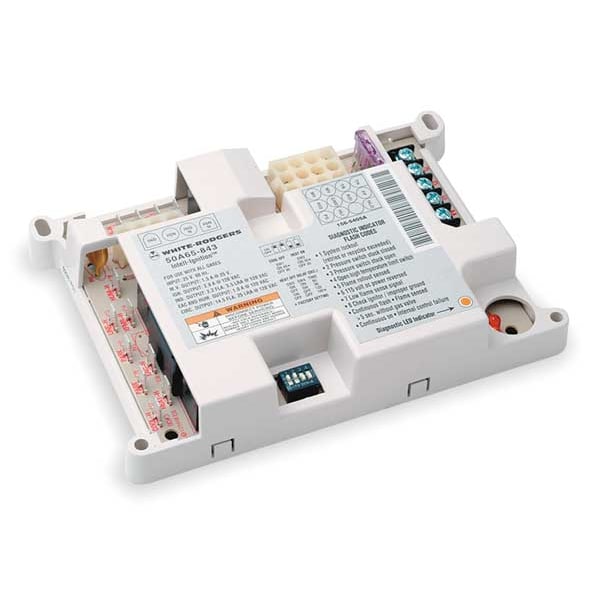

White-Rodgers Integrated Furnace Ctl 50A65 843S1 - main

Integrated Furnace Ctl

  • Mfr # 50A65 843S1

  • Zoro # G2003845

product price: $155.99
/ea
Free Shipping & Returns

Key Features

Control Volts
24 V
Voltage
24
Type
Hot Surface Ignition
For Use With
Residential, Commercial Heating Equipment
Amps AC
0.45 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
50A65 843S1
Zoro #
G2003845
UPC #
786710101304
Country of Origin
Mexico

Dimensions

Width (In.)
4 in
Depth (In.)
30 in
Height (In.)
1 1/2 in
Overall Depth
1 1/4 in
Overall Width
4 5/8 in
Overall Height
6 7/8 in

Details

Control Volts
24 V
Voltage
24
Type
Hot Surface Ignition
For Use With
Residential, Commercial Heating Equipment
Amps AC
0.45 A
Includes
Diagnostic Indicator Flash Codes, Single Channel Flame Sense
Electrical Connections
1/4 in Quick Connect
Prepurge Time (Sec.)
30 sec
Retries
2
Operation Description
Automatic Gas Interrupted Ignition Control That Employs A Microprocessor To Continually Monitor, Analyze, And Control The Proper Operation Of The Gas Burner, Inducer, And Fan
Electrical Ratings
24V AC
Gas Type
LP/NG
Igniter Warm-Up Time (Sec.)
20 sec
Item
Integrated Furnace Control
Standards
CSA Certified
Product Type
Integrated Furnace Control
Ignition Cycle Time
90 seconds (HSI), 30 seconds (pre-purge), 15 seconds (post-purge)
Thermostat Anticipator Setting
No Thermostat Anticipator
Cool Delay to Fan On
5 sec
Automatic Reset Time
1 hr
Number of Retries
2
Input Voltage
120V AC, 24V AC
Cool Delay to Fan Off
90 sec
Compatible with Brand
Amana, ICP, Trane, York
Frequency
50/60 Hz
Minimum Operating Temperature
-40 Degrees F
Control Voltage
24V AC
Series
843
Lock Out Time
5 min
OEM Replacement Part Number
Electrical Connection Type
1/4 in Quick-Connect
Maximum Operating Temperature
175 Degrees F
Board Type
Integrated Board
Flame Sensor Current Output
0.1 uA
For Fuel Type
LP, Natural Gas
Pre-Purge Time
30 sec
Replacement Type
OEM
Heat Delay to Fan On
45 sec
Heat Delay to Fan Off
180 sec
Igniter Warm Up Time
20 sec
Main Valve Current Output
1.5 A

Description

Integrated Furnace Control, Product Type Integrated Furnace Control, Maximum Operating Temperature 175 Degrees F, Minimum Operating Temperature -40 Degrees F, Lock Out Time 5 min, Pre-Purge Time 30 sec, Number of Retries 2, Main Valve Current Output 1.5 A, Flame Sensor Current Output 0.1 uA, Ignition Cycle Time 90 seconds (HSI), 30 seconds (pre-purge), 15 seconds (post-purge), Automatic Reset Time 1 hr, Compatible with Brand Amana, ICP, Trane, York
