  10. /
  11. Integrated Hot Surface Control, OEM
Shop All Furnace Control Boards
White-Rodgers

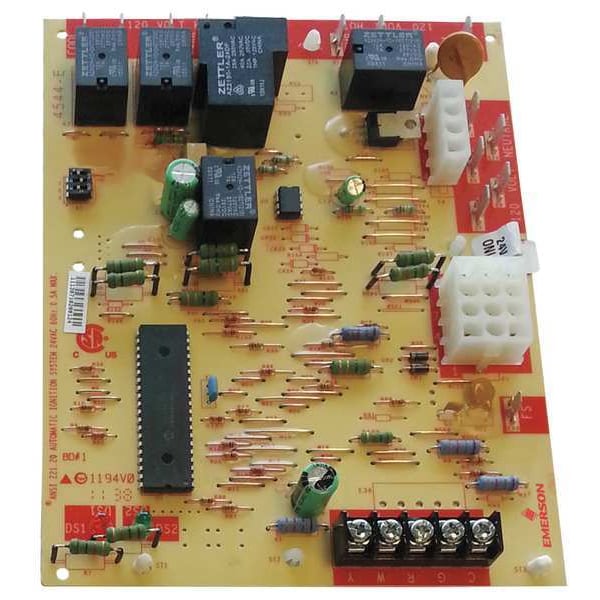

Integrated Hot Surface Control, OEM

original price: $151.99
3% off
new price: $145.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Replaces Lennox Models 30W2501, 100925-01, 100925-02, 100925-03, 17W92, 17W9201, 23W51, 23W5101, 30W25, 30W2501, 69M08, 69M0801, 69M15, 69M1501, 50A66-122, 50A66-123, 50A66-743
  • Input Voltage 25V AC
  • Includes ECMx Motor Control, PSC, Variable Speed
  • For Use With 100925-02, 100925-03, 17W92, 17W9201, 23W51, 23W5101, 30W25, 30W2501 69M08, 50A66-122, 50A66-123, 50A66-743, 69M0801, 69M15, 69M1501, Mfr. No. 100925-01
  • Type OEM Replacement
See all product information

Product Information

Details

Item Furnace Control Board
Replaces Lennox Models 30W2501, 100925-01, 100925-02, 100925-03, 17W92, 17W9201, 23W51, 23W5101, 30W25, 30W2501, 69M08, 69M0801, 69M15, 69M1501, 50A66-122, 50A66-123, 50A66-743
Input Voltage 25V AC
Includes ECMx Motor Control, PSC, Variable Speed
For Use With 100925-02, 100925-03, 17W92, 17W9201, 23W51, 23W5101, 30W25, 30W2501 69M08, 50A66-122, 50A66-123, 50A66-743, 69M0801, 69M15, 69M1501, Mfr. No. 100925-01
Type OEM Replacement
Control Volts 120 V
Igniter Voltage 80V AC
Product Type Furnace Control Board
Maximum Operating Temperature 175 Degrees F
Twinning Compatibility Not Twinning Compatible
Control Voltage 120V
OEM Replacement Part Number 100925-01, 100925-02, 100925-03, 17W92, 17W9201, 23W51, 23W5101, 30W25, 30W2501, 50A66-122, 50A66-123, 69M08, 69M0801, 69M15, 69M1501
Compatible Blower Motor Type Permanent Split Capacitor
Items Controlled Air Cleaners, Blowers, Gas Valves, Humidifiers, Ignitors, Inducers
Furnace Control Functions Cool, Heat
Heat Blower Off Delay Setting 60 sec, 90 sec, 120 sec, 180 sec
Board Type Integrated
Replacement Type OEM
Compatible Inducer Motor Type Permanent Split Capacitor
Compatible with Brand Lennox, White-Rodgers
Ignition Type Hot Surface Igniter
Heat Blower On Delay Setting 45 sec
Control Mounting Type Standoff
Maximum Relative Humidity 93 %
Terminal Designations C, R, W, Y G
Number of Stages 1
Number of Speed Taps 3
Cool Blower On Delay Setting 2 sec
Minimum Operating Temperature -40 Degrees F
Connection Interface Type Spade Terminal
Minimum Relative Humidity 5 %
Cool Blower Off Delay Setting 45 sec

Description

Furnace Control Board, Replacement Type OEM, Board Type Integrated, Compatible with Brand Lennox, White-Rodgers, OEM Replacement Part Number 100925-01, 100925-02, 100925-03, 17W92, 17W9201, 23W51, 23W5101, 30W25, 30W2501, 50A66-122, 50A66-123, 69M08, 69M0801, 69M15, 69M1501, Control Voltage 120V, Input Voltage 25V AC, Items Controlled Air Cleaners, Blowers, Gas Valves, Humidifiers, Ignitors, Inducers, Product Type Furnace Control Board, Heat Blower On Delay Setting 45 sec, Number of Stages 1
