  11. Line Volt Mechanical Tstat, Open on Rise, Box or Flush to Wall, 55 Degrees to 85 Degrees F, SPDT

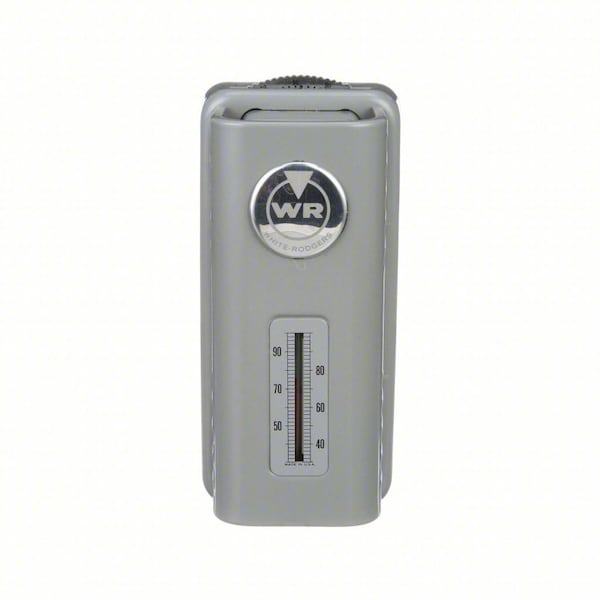

White-Rodgers Line Volt Mechanical Tstat, Open on Rise, Box or Flush to Wall, 55 Degrees to 85 Degrees F, SPDT 01 52 009S1 - main

Line Volt Mechanical Tstat, Open on Rise, Box or Flush to Wall, 55 Degrees to 85 Degrees F, SPDT

  • Mfr # 01 52 009S1

  • Zoro # G0321334

product price: $180.99
/ea
Free Shipping & Returns

Key Features

Compatible System Type
Electric Heating
Display Type
Analog
Application
Heat Only
Switch Action
Open on Rise
Switch Type
SPST
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
01 52 009S1
Zoro #
G0321334
UPC #
786710001314
Country of Origin
Mexico

Dimensions

Overall Height
4-1/2 in
Overall Depth
2-1/4 in
Overall Width
4-1/2 in

Details

Compatible System Type
Electric Heating
Display Type
Analog
Application
Heat Only
Switch Action
Open on Rise
Switch Type
SPST
Number of Heating Stages
1
Temperature Control Range
55 to 85 Degrees F
Control Type
Exposed Dial
Voltage
120 to 240V AC
Item
Line Voltage Mechanical Thermostat
Contact Rating Resistive @ 240V
22 A
Includes
Manual on Position, Temperature Readout
Number of Switches
1
Inductive Amps @ 120V
14 A
Inductive Amps @ 240V
7 A
Contact Rating Resistive @ 120V
25 A
Contact Rating Resistive @ 277V
18 A
Standards
CSA Certified, UL Listed
Locked Rotor Amps @ 240V
22 A
Locked Rotor Amps @ 120V
25 A
For Use With
Unit Heaters and Fan Coil Units
Features
Heavy Duty
Contact Rating
120V AC, 240V AC
Full Load Amps @ 120V AC
14 A
Temperature Scale
Fahrenheit
Temperature Sensitivity
+/-2 Degrees F
Housing Material
Steel
Enclosure Color
Gray
Full Load Amps @ 240V AC
7 A
Minimum Control Temperature
55 Degrees F
Number of Poles
1
Temperature Differential
2 Degrees F
Mounting Direction
Vertical
Maximum Control Temperature
85 Degrees F
Differential Type
Fixed
Programming Capability
Not Programmable

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPST, Thermostat Control Range 55 Degrees to 85 Degrees F, Thermostat Voltage 120 to 240V AC, Full Load Amps @ 120VAC 14 A, Full Load Amps @ 240VAC 7 A, Thermostat Programmable No, Remote Sensing Capability No, Thermostat Heating/Cooling Heating, Remote Sensing Bulb Included No, Switch Action Open on Rise, Number of Switches 1, Differential 2 Degrees F, Height 4 1/2 in, Width 4 1/2 in, Depth 2 1/4 in, Temp. Sensitivity 2 Degrees F, Color Gray
