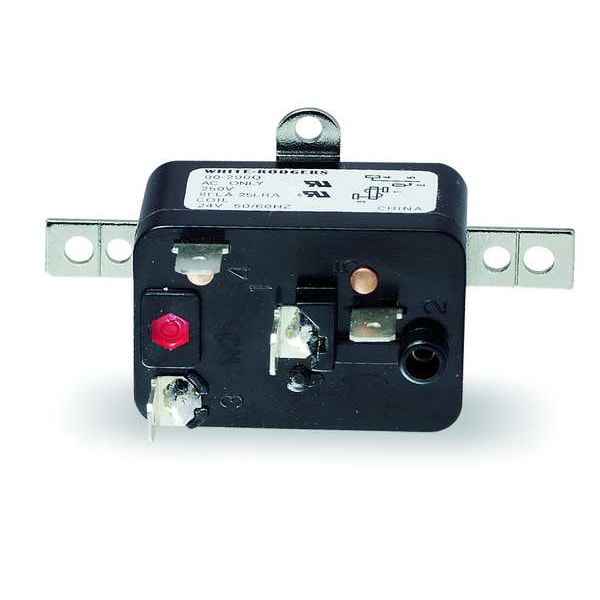

White-Rodgers

Relay, Fan, 24 Vac

product price: $8.95
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Switch Type SPNO
  • Coil Volts 24
  • Resistive Amps @ 120V 16 A
  • Full Load Amps @ 120VAC 8 A
  • Mounting Universal
See all product information

Product Information

Dimensions

Width (In.) 2 1/8 in
Depth (In.) 1 7/8 in
Height (In.) 2 1/4 in
Overall Depth 1 7/8 in
Overall Width 2 1/8 in
Overall Length 2 1/4 in

Details

Item Switching Relay
Switch Type SPNO
Coil Volts 24
Resistive Amps @ 120V 16 A
Full Load Amps @ 120VAC 8 A
Mounting Universal
Resistive Amps @ 240V 16 A
Includes Quick Connect Push On Terminals
Agency Compliance UL
Type Enclosed Fan Relay (Heavy-Duty)
Application Resistive Loads, Single Phase Motors, Solenoids, Two Speed Motors
Full Load Amps @ 240VAC 8 A
Resistive Amps @ 277V 6 A
Frequency 50/60 Hz
Resistive Load Current @ 240V AC 16 A
Full Load Current @ 120V AC 8 A
Horsepower @ 240V AC Not Rated
Contact Form SPST
Phase Single
Full Load Current @ 240V AC 8 A
Electrical Connection Type Quick Connect Terminals
Resistive Load Current @ 120V AC 16 A
Operating Temperature - Minimum -40 Degrees F
Operating Temperature - Maximum 150 Degrees F
Mounting Style Bracket
Switch Action Normally Open
Standards CSA LR1620, UL E4436
Low Voltage Contact Form SPST
Number of Relays 1
Thermostat Current 125 mA
Horsepower @ 120V AC Not Rated
Number of Pins 4
Voltage 24V AC

Description

Switching Relay, Application Resistive Loads, Single Phase Motors, Solenoids, Two Speed Motors, Contact Form SPST, Electrical Connection Type Quick Connect Terminals, Frequency 50/60 Hz, Full Load Current @ 120V AC 8 A, Full Load Current @ 240V AC 8 A, Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Includes Low Voltage Relay Not Applicable, Locked Rotor Current @ 120V AC Not Applicable, Locked Rotor Current @ 240V AC Not Applicable, Low Voltage Contact Form SPST
