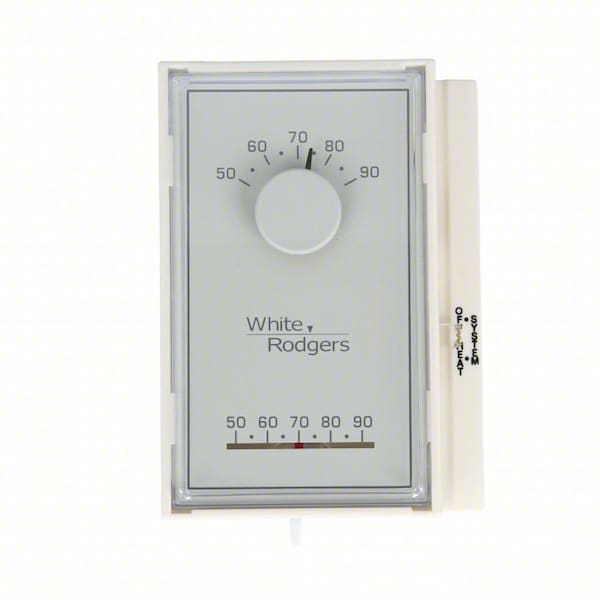

White-Rodgers Standard Mechanical Thermostats, 1 H, 0 C, Hardwired, 24VAC 1E50N-301 - main

Standard Mechanical Thermostats, 1 H, 0 C, Hardwired, 24VAC

  • Mfr # 1E50N-301

  • Zoro # G0953933

product price: $38.59
/ea

Key Features

Voltage
24VAC
Stages Heat
1
Mounting Type
Vertical
Color
White
Control Range
50 Degrees to 90 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1E50N-301
Zoro #
G0953933
UPC #
786710532054
Country of Origin
China

Dimensions

Height
4 1/2"
Width
3 1/4"
Depth
1 5/8 in
Overall Width
3 1/4 in
Overall Height
4 1/2 in
Overall Depth
1 5/8 in
Digit Size
Standard

Details

Item
Standard Mechanical Thermostats
Voltage
24VAC
Stages Heat
1
Mounting Type
Vertical
Color
White
Control Range
50 Degrees to 90 Degrees F
System Switching
Heat-Off
Stages Cool
0
Dual Transformer Compatible
No
Power Method
Hardwired
750mV Compatible
Yes
Automatic Changeover
No
Fan Switching
No
Mounting
Vertical
Features
Mercury Free
For Use With
Millivolt
Includes
Heat Only Back Plate, Off-Heat Subbase
Terminal Designations
RH, W
Standards
NEC Class II
Display Type
Analog
Temporary Temperature Hold
No
Humidification Control
No
Temperature Limiting
No
Dehumidification Control
No
Key Pad Lockout
No
Battery Backup
No
Temporary Program Override
No
Type
Mechanical Nonprogrammable Conventional Systems
Control Type
Slide Switch
Stages
1H Conventional
Fan Settings
Auto-On
System/Fan Settings
On-Off/Auto-On
Heat Pump Compatible
Heat Pump without Auxiliary
Frequency
50 Hz, 60 Hz
Mounting Direction
Vertical
Number of Cooling Stages - Heat Pump System
0
Number of Cooling Stages - Conventional System
0
Shape
Rectangle
Number of Heating Stages - Conventional System
1
Minimum Operating Humidity
0 %
Mercury Free
Yes
Contact Type
Snap Action
Maximum Control Temperature
90 Degrees F
Minimum Control Temperature
50 Degrees F
Temperature Control Range
50 Degrees to 90 Degrees F
Millivolt Compatible
Yes
System Settings
On-Off
Mounting Direction/Shape
Vertical
Temperature Readout
Yes
Differential Cool
1.5 Degrees F
Number of Heating Stages - Heat Pump System
0
Temperature Differential
1 Degrees F Heating, 1.5 Degrees F Cooling
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces
Differential Type
Adjustable
Differential Heat
1 Degrees F
Application
Heat Only
Electrical Connection Type
Hardwired
Temperature Scale
Fahrenheit
Includes Positive Off
Yes
Thermostat Type
Low Voltage
Operating Humidity Range
0% to 90%
Housing Color
White
Maximum Operating Humidity
90 %

Description

Low Voltage Thermostat, Terminal Designations RH, W, System Switching Heat-Off, Fan Switching No, Automatic Changeover No, Dual Transformer Compatible No, Power Method Hardwired, Voltage 20 to 30V AC, 750mV Compatible Yes, Mounting Vertical, Height 4 1/2 in, Width 3 1/4 in, Depth 1 5/8 in, Color White, Control Range 50 Degrees to 90 Degrees F, Features Mercury Free, For Use With Millivolt, Includes F92-0563 Kit, Switched Subbase, Standards NEC Class II
