  11. Thermostat, 5-2 Programs, 1 H, 1 C, Battery, 24VAC

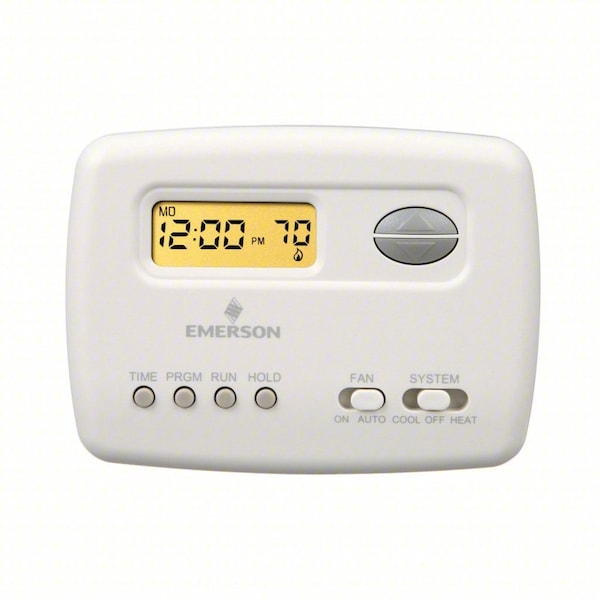

White-Rodgers Thermostat, 5-2 Programs, 1 H, 1 C, Battery, 24VAC 01F78 151S1 - main

Thermostat, 5-2 Programs, 1 H, 1 C, Battery, 24VAC

  • Mfr # 01F78 151S1

  • Zoro # G4721421

product price: $41.89
/ea

Key Features

Voltage
24VAC
Stages Heat
1
Mounting Type
Horizontal
Color
White
Control Range
45 Degrees to 99 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
01F78 151S1
Zoro #
G4721421
UPC #
786710100673
Country of Origin
Viet Nam

Dimensions

Height
3 1/4"
Width
5 1/8"
Display Size
1.2 sq in
Depth
1 1/8 in
Overall Width
5 1/8 in
Digit Size
Standard
Overall Depth
1 1/8 in
Overall Height
3 13/16 in

Details

Item
Thermostat
Voltage
24VAC
Stages Heat
1
Mounting Type
Horizontal
Color
White
Control Range
45 Degrees to 99 Degrees F
System Switching
Heat-Cool-Off
Stages Cool
1
Dual Transformer Compatible
Yes
Power Method
Battery
750mV Compatible
Yes
Programs per Week
5-2
Features
Covers Wall Marks Left by Most Mechanical Thermostats without the Need for an Extra Wall Plate
Programmable Fan
No
Battery Backup
Yes
Terminal Designations
RH, RC, Y, W, G, O, B
Key Pad Lockout
No
Humidification Control
No
Batteries Included
Yes
Low Battery Indicator
YES
Footnotes
3, 4
Temp. Settings per Day
4
Fan Switching
Auto-On
Includes
2 AAA batteries
Remote Sensing Capability
No
WiFi Capability
No
Display Type
LCD, Backlit
Temperature Limiting
No
Temporary Program Override
Yes
Mounting
Horizontal
Dehumidification Control
No
Temporary Temperature Hold
Yes
Stages
1H/1C Conventional, 1H/1C Heat Pump
Control Type
Push Button
Type
Digital Programmable Single Stage H/C or HP
Number of Cooling Stages - Heat Pump System
1
Differential Cool
1.2 Degrees F
Minimum Operating Humidity
0 %
Number of Cooling Stages - Conventional System
1
Housing Color
White
Includes Batteries
Yes
Temperature Readout
Yes
Maximum Operating Humidity
90 %
Maximum Operating Temperature
105 Degrees F
Temperature Differential
0.6 Degrees F, 1.2 Degrees F
Backlit Screen
Yes
Application
Heat and Cool
Includes Positive Off
Yes
Frequency
50 Hz, 60 Hz
Electrical Connection Type
Hardwired
Operating Humidity Range
0% to 90% RH
Shape
Rectangle
Temperature Scale
Fahrenheit/Celsius
Backlit Type
Touch Activated
Fan Settings
Auto-On
Mounting Direction/Shape
Horizontal
Minimum Control Temperature
45 Degrees F
System Settings
Cool-Heat-Off
Operating Temperature Range
32 Degrees to 105 Degrees F
Smart Connectivity
No Connectivity
Filter Change Reminder
No
Temperature Control Range
45 Degrees to 99 Degrees F
Number of Heating Stages - Heat Pump System
1
Programming Capability
5-2
Millivolt Compatible
Yes
Maximum Control Temperature
99 Degrees F
Differential Heat
0.5 Degrees F, 1.9 Degrees F
Minimum Operating Temperature
32 Degrees F
Battery Type
(2) AAA Batteries
Application/Stages
Heat and Cool; 1H/1C Conventional, 1H/1C Heat Pump
Temperature settings per day
4
Mounting Direction
Horizontal
Contact Rating
20 to 30V AC
Thermostat Type
Low Voltage
Differential Type
Adjustable
Changeover Type
Manual
Number of Zones
1
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Hydronic Systems, Heat Pump without Aux, Millivolt
System/Fan Settings
Cool-Heat-Off/Auto-On
Number of Heating Stages - Conventional System
1

Description

Low Voltage Thermostat, Stages Heat 1, Stages Cool 1, Temp. Settings per Day 4, Programs per Week 5-2, Terminal Designations B, G, O, RC, RH, W, Y, WiFi Capability No, System Switching Heat-Cool-Off, Fan Switching Auto-On, Display Size 1.2 sq in, Display Type Digital, Key Pad Lockout No, Programmable Fan No, Humidification Control No, Dehumidification Control No, Remote Sensing Capability No, Temporary Program Override Yes, Temporary Temperature Hold Yes, Temperature Limiting No
