  11. Cor Rad End Mill, 1/2", Carb, 0.1200" rad

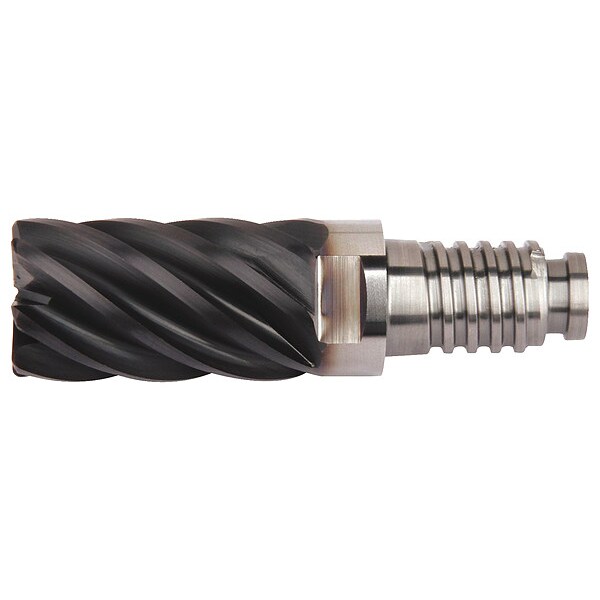

Widia Cor Rad End Mill, 1/2", Carb, 0.1200" rad 7VCE13EDL12 - main

Cor Rad End Mill, 1/2", Carb, 0.1200" rad

  • Mfr # 7VCE13EDL12

  • Zoro # G3620679

product price: $114.99
/ea
Free Shipping & Returns

Key Features

Dimension Type
Decimal Inch
Corner Radius
0.12 in
Milling Diameter
1/2"
End Mill Material
Carbide
Number of Flutes
7
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7VCE13EDL12
Zoro #
G3620679
UPC #
4056544277862
Country of Origin
Israel

Dimensions

Dimension Type
Decimal Inch
Corner Radius
0.12 in
Milling Diameter
1/2"
Shank Dia.
4803/10000 in
Milling Dia.
0.5 in
Length of Cut
0.75 in
Overall Length
44 1/10 in
Depth of Cut
3/4

Details

End Mill Material
Carbide
Number of Flutes
7
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Finish
AlTiN
Grade
WS15PE
End Mill Application
Finishing
End Mill Style
Corner-Radius
Helix Angle
38 Degrees
Cutting Direction
Right Hand
List Number
7VCE
Item
Corner Radius End Mill
Coolant Fed
Non-Coolant Through
Material - Machining
Carbide
Finish - Machining
AlTiN
Material Grade - Machining
WS15PE
Measurement System
Inch
Shank Type - Machining
Straight
Drilling Tool Configuration
Individual
Primary Material Application
Hardened Steel, Nickel, Stainless Steel, Steel, Titanium
Primary Material Application ISO Code
H, M, P, S
Max. Helix Angle
38 Degrees

Description

Corner Radius End Mill, 0.5 in Milling Dia., Carbide, AlTiN, Non-Coolant Through, Straight, Inch, 0.12 in, 0.75 in, 44 1/10 in
