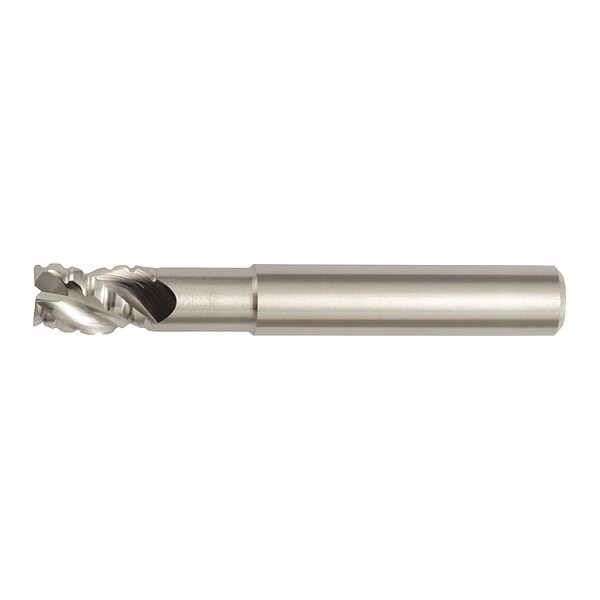

Cor Rad End Mill, 20.00mm, Carb, 1.00mm rad

  • Mfr # 49N92001R7JT
  • Zoro # G3620712
product price:
$
189.99
/ea
Free Shipping & Returns

Key Features

Dimension Type
Metric
Corner Radius
1 mm
Milling Diameter
20.00mm
End Mill Material
Carbide
Number of Flutes
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
49N92001R7JT
Zoro #
G3620712
UPC #
4061779068406
Country of Origin
Israel
End Mill Material
Carbide
Number of Flutes
3
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Grade
Bright (Uncoated)
Helix Angle
40 Degrees
Cutting Direction
Right Hand
End Mill Application
Roughing
End Mill Style
Corner-Radius
Item
Roughing End Mill
List Number
49N9
Material - Machining
Carbide
Coolant Fed
Non-Coolant Through
Finish - Machining
Bright (Uncoated)
Shank Type - Machining
Straight
Spiral Direction
Right Hand
Measurement System
Metric
Series
Roughers
Material Grade - Machining
Bright (Uncoated)
Drilling Tool Configuration
Individual
Primary Material Application ISO Code
N
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium
Max. Helix Angle
40 Degrees

Dimensions

Dimension Type
Metric
Corner Radius
1 mm
Milling Diameter
20.00mm
Shank Dia.
20 mm
Milling Dia.
20 mm
Overall Length
104 mm
Length of Cut
38 mm
Wire Rope Length
104 mm
Length
104 mm

Description

Roughing End Mill, 20 mm Milling Dia., Carbide, Non-Coolant Through, Straight, Metric, 1 mm, 38 mm, 104 mm
