  11. Cor Rad End Mill, 20.00mm, Carb, rad

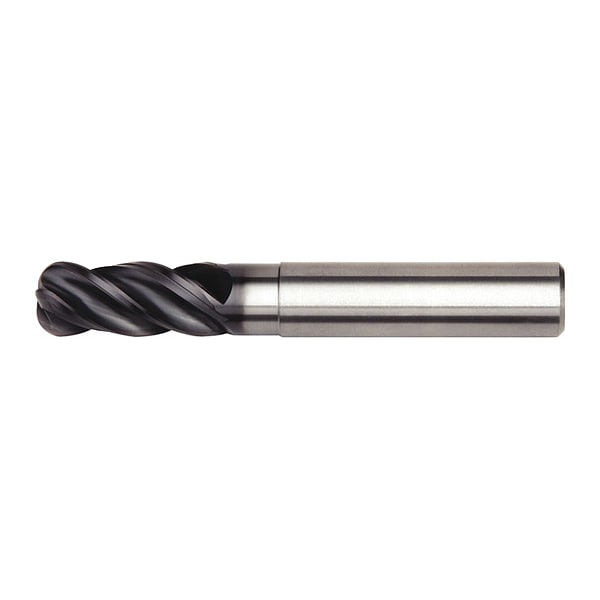

Widia Cor Rad End Mill, 20.00mm, Carb, rad 47N7200C7W - main

Cor Rad End Mill, 20.00mm, Carb, rad

  • Mfr # 47N7200C7W

  • Zoro # G3804952

product price: $431.99
/ea
Free Shipping & Returns

Key Features

Dimension Type
Metric
Milling Diameter
20.00mm
End Mill Material
Carbide
Number of Flutes
4
Single End/Double End
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
47N7200C7W
Zoro #
G3804952
UPC #
4059782971035
Country of Origin
Israel

Dimensions

Dimension Type
Metric
Milling Diameter
20.00mm
Shank Dia.
20 mm
Overall Length
104 mm
Milling Dia.
20 mm
Length of Cut
38 mm

Details

End Mill Material
Carbide
Number of Flutes
4
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Grade
ALTIN-MT
Helix Angle
38 Degrees
End Mill Application
Finishing
End Mill Style
Corner-Radius
List Number
47N7
Cutting Direction
Right Hand
Item
Corner Radius End Mill
Series
VariMill I(TM)
Material - Machining
Carbide
Shank Type - Machining
Weldon Flat
Coolant Fed
Non-Coolant Through
Measurement System
Metric
Spiral Direction
Right Hand
Finish - Machining
AlTiN
Drilling Tool Configuration
Individual
Material Grade - Machining
AlTiN-MT
Primary Material Application ISO Code
H, M, P
Primary Material Application
Hardened Steel, Stainless Steel, Steel
Max. Helix Angle
38 Degrees

Description

Corner Radius End Mill, 20 mm Milling Dia., Carbide, AlTiN, Non-Coolant Through, Weldon Flat, Metric, 38 mm, 104 mm
