Shop WIDIA

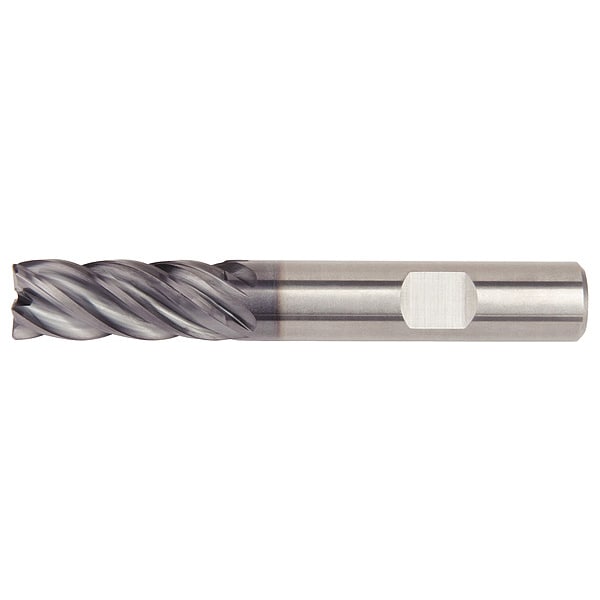

Cor Rad End Mill, 8.00mm, Carb, 1.50mm rad

  • Mfr # 577C080R3TK

  • Zoro # G3807822

product price:  $65.39
/ea

Key Features

Dimension Type
Metric
Corner Radius
1.5 mm
Milling Diameter
8.00mm
End Mill Material
Carbide
Number of Flutes
5
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
577C080R3TK
Zoro #
G3807822
UPC #
4059782960800
Country of Origin
Mexico

Dimensions

Dimension Type
Metric
Corner Radius
1.5 mm
Milling Diameter
8.00mm
Shank Dia.
8 mm
Overall Length
63 mm
Length of Cut
19 mm
Milling Dia.
8 mm

Details

End Mill Material
Carbide
Number of Flutes
5
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Grade
WP15PE
Cutting Direction
Right Hand
End Mill Style
Corner-Radius
Helix Angle
38 Degrees
List Number
577C
Item
Corner Radius End Mill
End Mill Application
Finishing
Coolant Fed
Non-Coolant Through
Measurement System
Metric
Series
VariMill II(TM)
Finish - Machining
AlTiN
Material - Machining
Carbide
Spiral Direction
Right Hand
Shank Type - Machining
Straight
Material Grade - Machining
WP15PE
Drilling Tool Configuration
Individual
Primary Material Application ISO Code
K, M, P
Primary Material Application
Cast Iron, Stainless Steel, Steel
Max. Helix Angle
38 Degrees

Description

Corner Radius End Mill, 8 mm Milling Dia., Carbide, AlTiN, Non-Coolant Through, Straight, Metric, 1.5 mm, 19 mm, 63 mm

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
