  11. Corner Chamfer End Mill, 1 in, Carbide

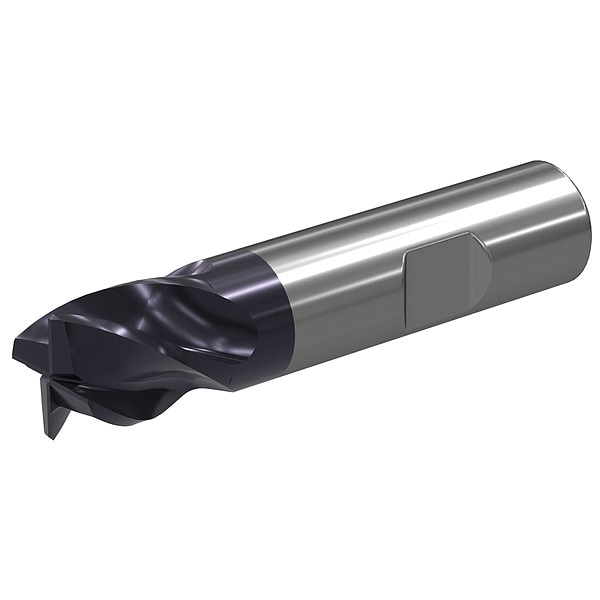

Widia Corner Chamfer End Mill, 1 in, Carbide W401E2500ACTW WU20PE - main

Corner Chamfer End Mill, 1 in, Carbide

  • Mfr # W401E2500ACTW WU20PE

  • Zoro # G305906288

product price: $212.99
/ea
Free Shipping & Returns

Key Features

Number of Flutes
4
Overall Length
4 in
Shank Dia.
1 in
Length of Cut
1 1/2 in
End Mill Style
Corner-Chamfer
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
W401E2500ACTW WU20PE
Zoro #
G305906288
UPC #
-
Country of Origin
Israel

Dimensions

Overall Length
4 in
Shank Dia.
1 in
Length of Cut
1 1/2 in
Chamfer Width
0.02 in
Milling Dia.
1 in

Details

Item
Corner Chamfer End Mill
Number of Flutes
4
End Mill Style
Corner-Chamfer
Single End/Double End
Single
Series
WCE4
Spiral Direction
Right Hand
Helix Angle
39 Degrees
List Number
W401
Cutting Direction
Right Hand
Chamfer Angle
45 Degrees
End Mill Cutting Type
Center Cutting
End Mill Application
Blank Ramping, Helical Milling, Side Milling, Square End Shoulder Milling, Square End Slotting
Coolant Fed
Non-Coolant Through
Primary Material Application
Cast Iron, Stainless Steel, Steel
Measurement System
Inch
Shank Type - Machining
Weldon Flat
Min. Helix Angle
37 Degrees
Secondary Material Application
Hardened Material, High-Temperature Alloy
Drilling Tool Configuration
Individual
Max. Helix Angle
39 Degrees
Material Applications
Cast Iron, Hardened Material, High-Temperature Alloy, Stainless Steel, Steel
Flute Type
Spiral
Secondary Material Application ISO Code
H, S
Finish - Machining
TiAlN
Primary Material Application ISO Code
K, M, P
Material - Machining
Carbide
Material Grade - Machining
WU20PE
Flute Spacing
Variable

Description

Corner Chamfer End Mill, 1 in Milling Dia., Carbide, TiAlN, Non-Coolant Through, Weldon Flat, Inch, 45 Degrees , 0.02 in, 1 1/2 in
