  11. Corner Chamfer End Mill, 10 mm, Carbide

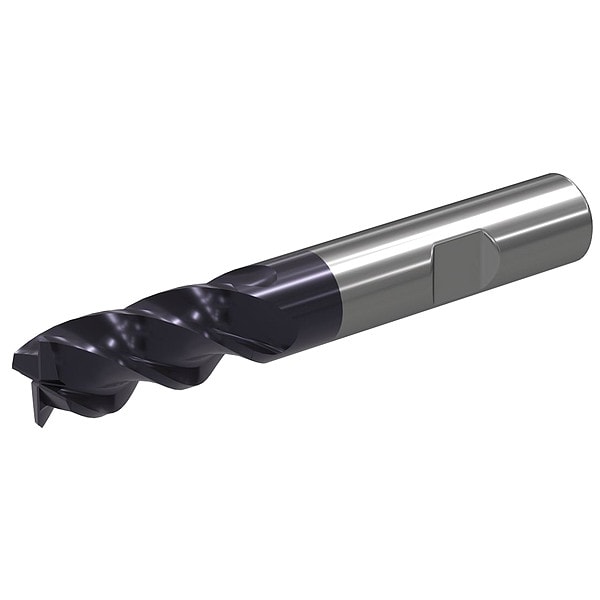

Widia Corner Chamfer End Mill, 10 mm, Carbide W401M10005CEW WU20PE - main

Corner Chamfer End Mill, 10 mm, Carbide

  • Mfr # W401M10005CEW WU20PE

  • Zoro # G205905480

product price: $47.99
/ea

Key Features

Number of Flutes
4
Overall Length
72 mm
Shank Dia.
10 mm
Length of Cut
22 mm
End Mill Style
Corner-Chamfer
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
W401M10005CEW WU20PE
Zoro #
G205905480
UPC #
-
Country of Origin
Viet Nam

Dimensions

Overall Length
72 mm
Shank Dia.
10 mm
Length of Cut
22 mm
Shank Length
43.3 mm
Milling Dia.
10 mm
Chamfer Width
0.5 mm

Details

Item
Corner Chamfer End Mill
Number of Flutes
4
End Mill Style
Corner-Chamfer
Single End/Double End
Single
End Mill Application
Blank Ramping, Helical Milling, Side Milling, Square End Shoulder Milling, Square End Slotting
Series
WCE4
Cutting Direction
Right Hand
Chamfer Angle
45 Degrees
List Number
W401
Spiral Direction
Right Hand
End Mill Cutting Type
Center Cutting
Helix Angle
39 Degrees
Drilling Tool Configuration
Individual
Coolant Fed
Non-Coolant Through
Max. Helix Angle
39 Degrees
Material - Machining
Carbide
Material Applications
Cast Iron, Hardened Material, High-Temperature Alloy, Stainless Steel, Steel
Primary Material Application ISO Code
K, M, P
Finish - Machining
TiAlN
Secondary Material Application
Hardened Material, High-Temperature Alloy
Primary Material Application
Cast Iron, Stainless Steel, Steel
Material Grade - Machining
WU20PE
Secondary Material Application ISO Code
H, S
Shank Type - Machining
Weldon Flat
Measurement System
Metric
Min. Helix Angle
37 Degrees
Flute Type
Spiral
Flute Spacing
Variable

Description

Corner Chamfer End Mill, 10 mm Milling Dia., Carbide, TiAlN, Non-Coolant Through, Weldon Flat, Metric, 45 Degrees , 0.5 mm, 22 mm
